FLUKE MULTIMETER W/BLUE TOOTH FLUKE-1587 FC
Pre Order Today
Item Number
1587FC

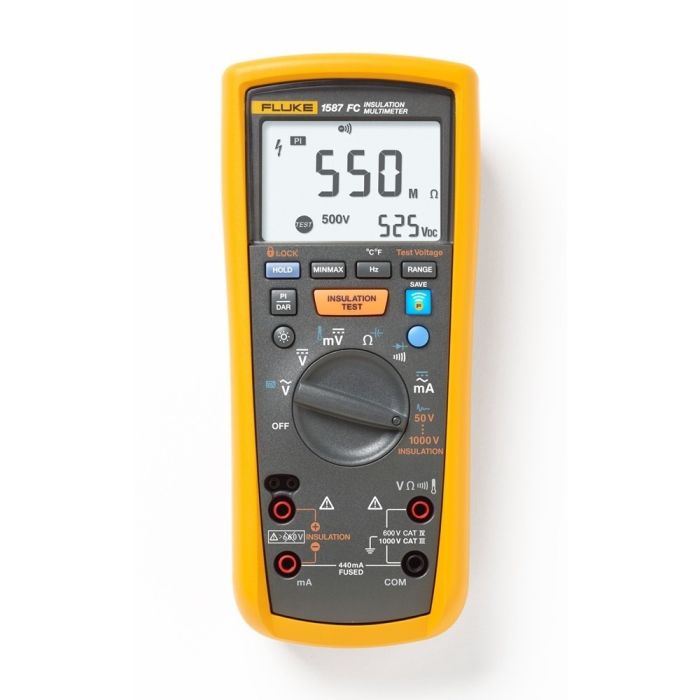

The Fluke 1587 FC Insulation Multimeter combines a digital insulation tester with a full-featured, true-rms digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. The 1587 FC provides critical data to Fluke Connect Assets software, giving managers comprehensive dashboard views of all critical equipment — including baseline, historical, and current test tool measurement data — enabling easy set up and sustainment of a preventive maintenance (PM) or condition-based maintenance (CBM) system.
Features
- PI/DAR timed ratio tests with TrendIt graphs to identify moisture and contaminated insulation problems faster
- Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
- Temperature compensation to establish accurate baselines and relevant historical comparisons
- Historical tracking and trending of assets to identify insulation degradation over time and allow real-time decisions to be made in the field with Fluke Connect Assets (sold separately)
- Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
- Includes live circuit detection to prevent insulation test if voltage >30 V is detected
- Provides automated temperature compensation to establish accurate baselines
- Supports historical tracking and asset trending of assets to identify degradation over time with Fluke Connect Assets (sold separately)
- Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
- Includes auto-discharge of capacitive voltage for added user protection
Specifications
- Insulation Testing Voltage: 50V, 100V, 250V, 500V, 1kV
- Insulation Testing Resistance: 0.01Mohm to 2Gohm
- Operating Temperature Min: -20°C
- Operating Temperature Max: 55°C
| Item Number | 1587FC |
|---|---|
| Weight | 2.000000 |
| Vendor Part Number | 4691215 |
