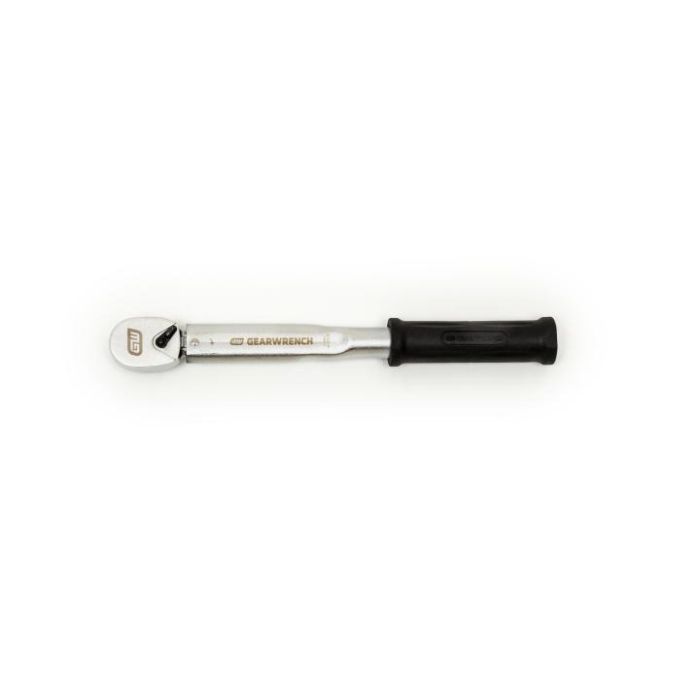

GearWrench 3/8" Drive Preset Micrometer Torque Wrench 5-25 Nm
The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. The line includes micrometer, tire shop, beam, and electronic torque wrenches and torque multipliers. The micrometer wrenches come available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drive sizes. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended specifically for checking wheel lug nuts and are available in 3/8" and 1/2" drive sizes. The electronic torque wrenches ensure a precise fastener torque level and are available in either 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow you to complete any job where accurate torque is required.
Features
- 36-tooth ratchet mechanism with a 10° swing arc allows you to turn fasteners in spaces other tools can't fit
- Torque accuracy of +/- 3% CW between 20% and 100% of wrench capability
- Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application
Specifications
- Prop 65 : WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
- ASME Specification : B107.300
- Minimum Torque (Primary Scale) : 5 Nm
- Tether Ready : No
- Maximum Torque (Primary Scale) : 25 Nm
- Minimum Torque (Alt Scale) : 4
- Maximum Torque (Alt Scale) : 18
- Torque Accuracy (20-100% of Full Range) : +/-3% Clockwise
- Certified : No
- Head Thickness Less Tang : 0.472 in
- Head Thickness : 0.91
- Knurled : No
- Flexible : No
- Overall Length : 8.42
- Head Width : 0.98
- ANSI Specification : ISO6789
- Packaging : Boxed
- Weight (Catalog) : 0.800
- Warranty : 90 Days Calibration/1 Year on Parts
- Drive Tang Size : 3/8 in
- Tooth Count : 36
- Finish : Satin Chrome
- Overall Height : 0.98
- UPC : 099575851612
- Included Storage : Blow Mold Case
- Overall Width : 0.98
- Drive Type : Square
- Material : Alloy Steel
Item Number | 85161 |
---|---|
Weight | 1.000000 |
Vendor Part Number | 85161 |
