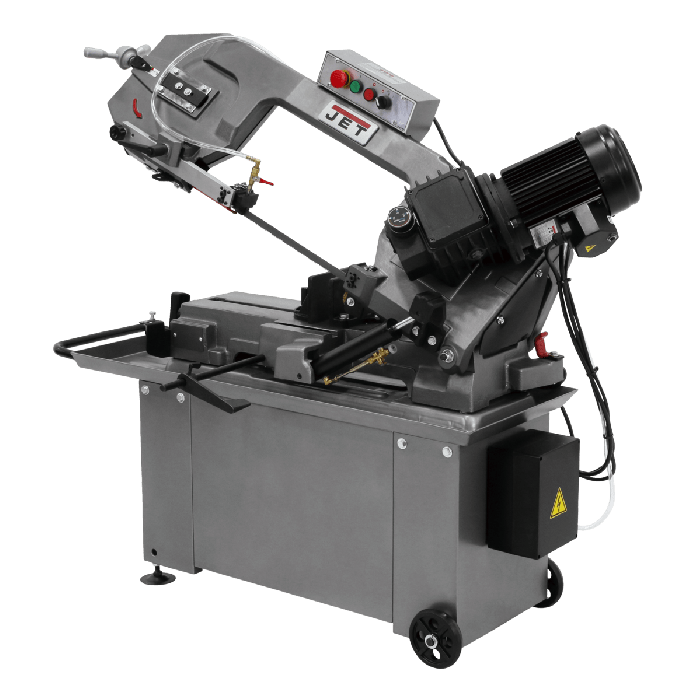

HBS-814GH, 8"X14" HORIZONTAL GEARED HEAD BANDSAW
Pre Order Today
Item Number
414466
The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.
Features
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Heavy-duty geared head transmission for quick speed changes
- Fully adjustable hydraulic downfeed system
- Easily accessible saw control panel
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Built-in, self propelled blade brush extends blade life
- Wheels permit easy storage and movement
- Coolant system
- Adjustable material stop
- 3/4" Bi-Metal blade
Specifications
- Cutting Capacity: 8"x14"
- Round at 90 Degrees: 8"
- Rectangle at 90 Degrees: 14"x8" and 2"x14"
- Blade Speeds (sfpm): 135, 197, 256
- Blade Wheel Diameter: 12"
- Blade Length: 97"
| Item Number | 414466 |
|---|---|
| Weight | 500.000000 |
| Vendor Part Number | JT9-414466 |
