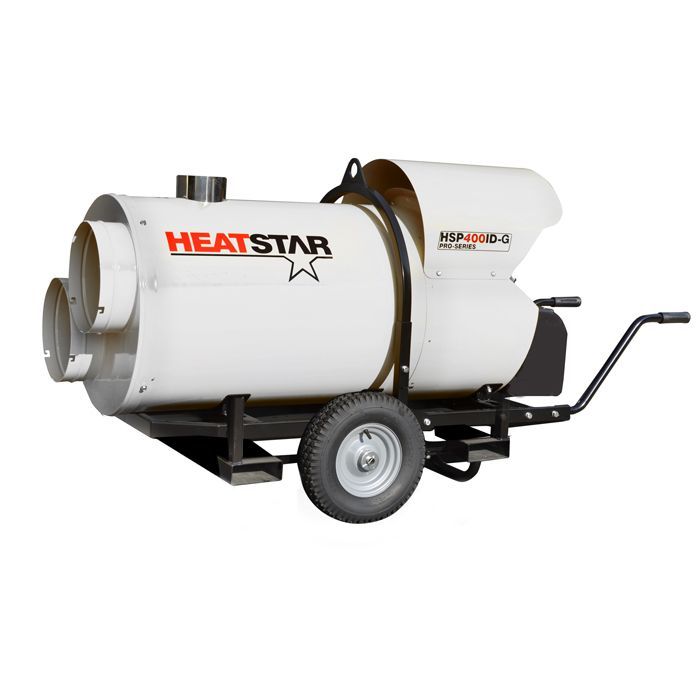

HEATSTAR 400,000BTU INDIRECT FIRED NG/LP HEATER
Pre Order Today
Item Number
HSP400ID-G
The HSP400ID-G Indirect Fired (Natural Gas or Propane) Heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event tents, food preparation areas, exhibition halls, and construction sites. They can be used with flexible duct that spreads the warm air around easily.
Features
- Heavy duty frame
- Lift bracket
- Heat exchanger to keep exhaust gas and heated air separate
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
Specifications
- Weight 473
- Fuel Type Natural Gas or Propane
- Minimum LP Tank Size See Manual for Guidelines
- Minimum NG Line Size See Manual for Guidelines
- Electrical Rating 120V/60 Hz, 13 Amps
- Air Volume (CFM) 4032
- Gas Inlet Connection 1/2in
- Gas Inlet Pressure Min NG (7in w.c.) / LP (8in w.c.)
- Gas Inlet Pressure Max NG (10in w.c.) / LP (13in w.c.)
- Clearance to Combustibles: Horizontal 6 ft
- Recirculating Ducting F105127 Adapter Ring / F105128 24in x 25ft Duct and Clamp
- Duct Length Max 100 ft
- Duct Diameter Standard Dual (12in) or Single F105126 (16in)
- Multiple Ducting Optional F150040 12in x 25ft / F150050 16in x 25ft
- Wheel Type Pneumatic
- Thermostat Optional F105108 Analog (33') / F105106 Digital (33')
- Item Length (in) 68
- Item Width (in) 27
- Item Height (in) 60
| Item Number | HSP400ID-G |
|---|---|
| Weight | 475.000000 |
| Vendor Part Number | F105135 |
