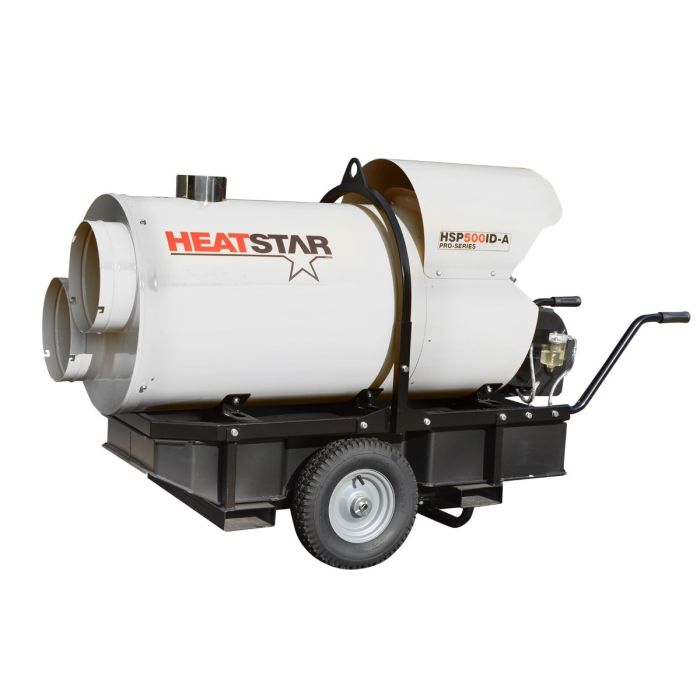

HEATSTAR 500,000BTU INDIRECT FIRED MULTI-FUEL HEATER
Pre Order Today
Item Number
HSP500ID
The HSP500ID-A Indirect Fired Heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event tents, food preparation areas, exhibition halls, and construction sites. They can be used with flexible duct that spreads the warm air around easily.
Features
- Heavy duty frame
- Lift bracket
- Heat exchanger to keep exhaust gas and heated air separate
- 46 gallon tank capacity
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
Specifications
- Weight 484
- Fuel Type Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel
- Tank Capacity (Gal) 46
- Ignition Continuous
- Electrical Rating 120v, 60 HZ, 13 Amp
- Air Volume (CFM) 4032
- Heated Fuel Filter Standard
- Heated Nozzle No
- Clearance to Combustibles: Horizontal 6 ft
- Adapter F105126 Single (16") / Standard Dual 12" Attached
- Recirculating Ducting F105127 Adapter Ring / F105128 24in x 25ft Duct and Clamp
- Duct Length Max 100 ft
- Duct Diameter Standard Dual (12in) or Single F105126 (16in)
- Multiple Ducting Optional F150040 12in x 25ft / F150050 16in x 25ft
- Wheel Type Pneumatic
- Thermostat Optional F105108 Analog (33') / F105106 Digital (33')
| Item Number | HSP500ID |
|---|---|
| Weight | 500.000000 |
| Vendor Part Number | F105125 |
