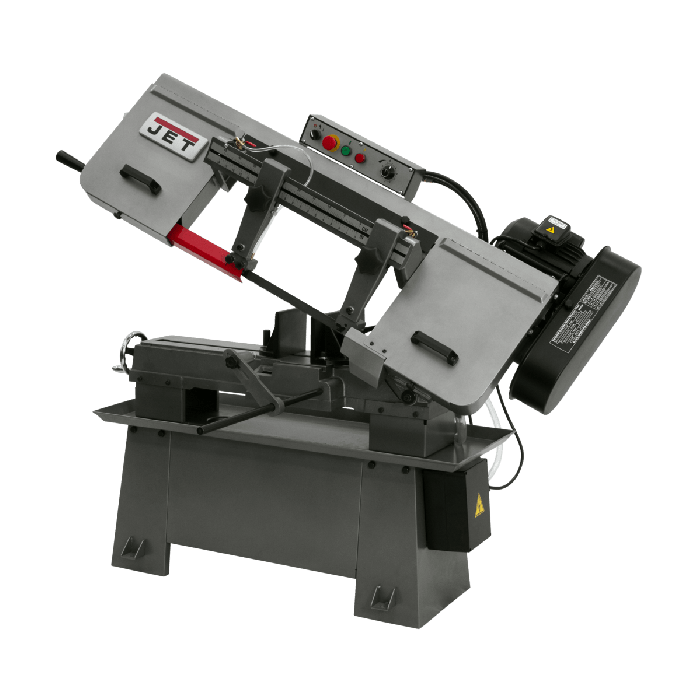

J-7015, 8" X 13" HORIZONTAL BANDSAW
Pre Order Today
Item Number
414450
The JET J-7015 Horizontal Bandsaw was manufactured for long lasting, efficient use. Designed to deliver accurate cuts without undue blade fatigue, this JET saw works longer and stronger so productivity never suffers.
Heavy-duty, rigid steel and cast iron construction of the head, and base provides full blade support and elimnates vibration and deflection Combination oil bath, gear reduction power train, along with precision blade guides and a hydraulic feed system delivers consistent, accurate cuts and longer blade life Conveniently located control panel, and an easily accessible coolant system Rapid acting vise (allows miter cutting to 45°) Coolant system 1" Bi-metal blade Adjustable material stop
Features
- For added safety, the J-7015 follows strict guidelines and electrical requirements to be certified by CSA Group
- Dual voltage electrics (115/230V) with overload and low voltage protection
- Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
- Fully adjustable hydraulic downfeed system
- Carbide blade guides feature parallel double-row ball bearing support
- Longer blade wheel base reduces blade fatigue and increases blade life
- Heavy-duty, rigid steel and cast iron construction of the head and base provides full blade support, eliminating vibration and deflection
- Conveniently located control panel and easily accessible coolant system
- Easy-to-use belt drive tensioner does not require tools for blade speed changes or belt replacement
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Coolant system
- Adjustable material stop
- 1" Bi-Metal blade
Specifications
- Round at 90 Degrees: 9"
- Round at 45 Degrees: 9"
- Rectangle at 90 Degrees: 9"x13"
- Rectangle at 45 Degrees: 9"x8"
- Square at 90 Degrees: 8-1/2"
- Vise Swivels (Deg.): 45°
- Blade Speeds (SFPM): 82, 132, 170, 235
- Blade Wheel Diameter: 11-5/8"
- Blade Length: 114-1/2"
- Blade Size: 1" x .035" x 114-1/2"
- Bed Height: 27-1/2"
- Motor (HP): 1-1/2 HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H): 62-1/2" x 23" x 48"
| Item Number | 414450 |
|---|---|
| Weight | 600.000000 |
| Vendor Part Number | 414450 |
