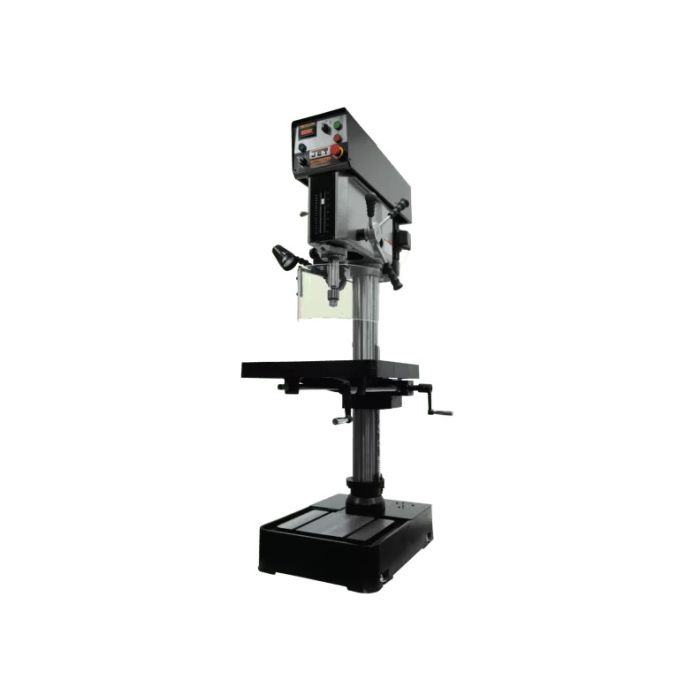

JDP-20VST, 20" HD VS DRILL PRESS WITH TAPPING 460V
Pre Order Today
Item Number
354240
Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles and tapping with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base. CSA/CUS Certified.
Features
- CSA Coolant System
- Front Mounted LED Spindle RPM Readout
- Front mounted positive control depth stop
- Large Hand Grips designed with the users comfort in mind
- Large precision ground T-Slot production table for easy set ups
- Massive 3" quill diameter
- Table rotates 360° around the column
- Drill Chuck not included
- Tapping Capacity up to 3/4" in Mild Steel
Specifications
- Stock Number JT9-354240
- Base Dimensions (In.) 27 x 19
- Column Diameter (In.) 4-1/2
- Drilling Capacity Cast Iron (In.) 1-1/2
- Drilling Capacity Mild Steel (In.) 1-3/8
- Drills to Center of Circle (In.) 20
- Model Number JDP-20VST
- Motor (HP) 2HP, 230V,3ph
- Overall Dimensions (L x W x H) (In.) 38.18 x27.16 x 79.52
- Prewired Voltage (V.) 230
- Prop 65 Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM) 150 - 2,000
- Spindle Distance to Base (In.) 44-1/2
- Spindle Distance to Table (Max.) (In.) 30-1/4
- Spindle Taper (In. x TPI) MT-3
- Spindle Travel (In.) 6
- Style (Type) Variable Speed
- Swing (In.) 20
- T-Slot Centers (In.) 7-7/16
- Table Size (L x W) (In.) 22x18-3/4
- Table Travel (In.) 20
- Tapping Capacity Cast Iron (In.) 3/4
- Tapping Capacity Mild Steel (In.) 5/8
- Weight (Lbs.) 780
- Work Table Weight Capacity (Lbs.) 154
| Item Number | 354240 |
|---|---|
| Weight | 780.000000 |
