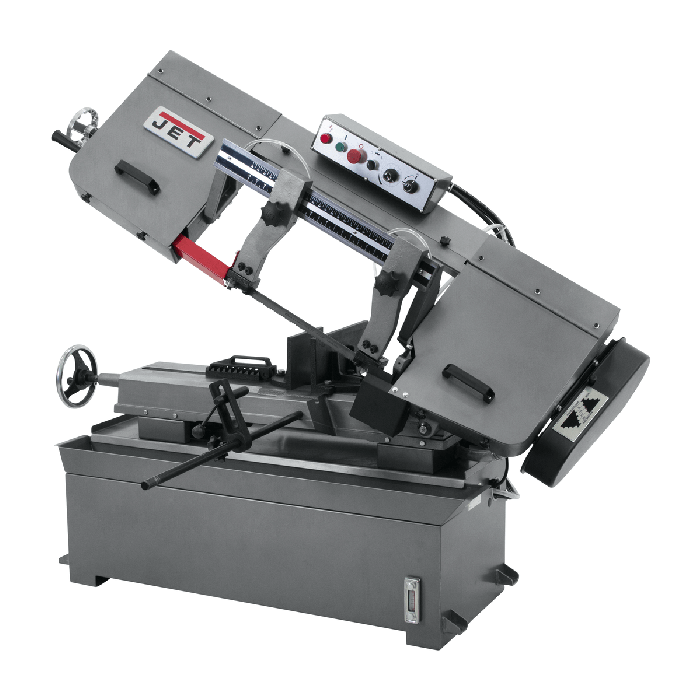

JET HBS-1018W 10" X 18" HORIZONTAL BANDSAW
Pre Order Today
Item Number
414473
Set on a heavy-duty machined tabled bed to eliminate vibration, the JET 10" x 18" Horizontal Bandsaw delivers a precision cut time after time. Multiple operational features make this a highly desired piece of machinery for any shop.
Features
- Carbide blade guides feature parallel double-row ball bearing support
- Coolant is distributed through the blade guides
- Easy access chip tray allows quick cleanup
- Blade is guarded, regardless of blade guide position
- Large hand wheel and built-in gauge provides easy blade tensioning
- Built-in, self propelled blade brush extends blade life
- Quick-positioning vise with fully adjustable jaws, swivels up to 45°
- Fully adjustable hydraulic downfeed with separate on/off control valve
- Automatic shut-off after cut
- Coolant system
- Adjustable material stop
- 1" Bi-Metal blade
Specifications
- Cutting Capacity (W x D): 10"x18"
- Round at 90 Degrees: 10"
- Round at 45 Degrees: 7-3/4"
- Rectangle at 90 Degrees: 10" x 16" and 6-1/2" x 18"
- Rectangle at 45 Degrees: 10" x 7-1/2"
- Blade Speeds (SFPM): 82, 132, 210, 330
- Blade Wheel Diameter: 14"
- Blade Length: 130-1/2"
- Blade Size: 1" x .035" x 130-1/2"
- Bed Height: 23-1/2"
- Motor: 2 HP, 230V Only, 1Ph
| Item Number | 414473 |
|---|---|
| Weight | 600.000000 |
| Vendor Part Number | JT9-414473 |
