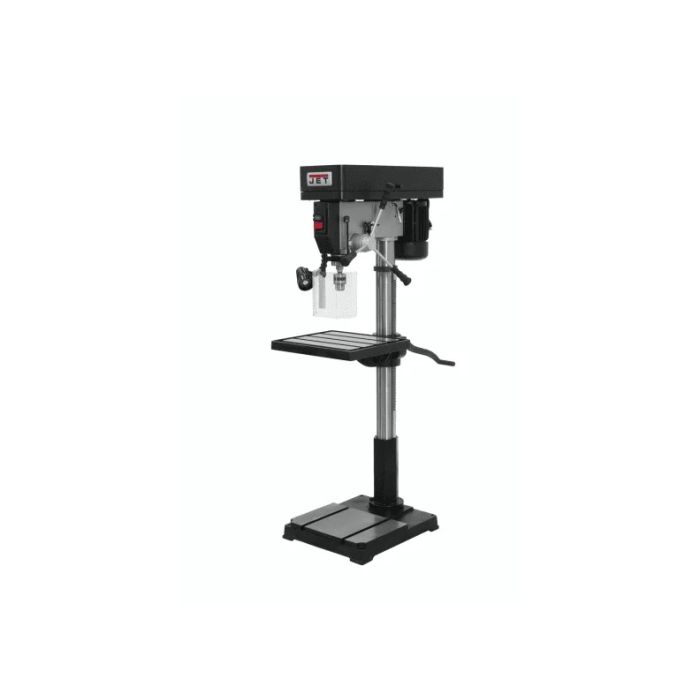

JET IDP-22, 22" INDUSTRIAL FLOOR MODEL DRILL PRESS
Pre Order Today
Item Number
354301
Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize cast iron tables and base and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.
Features
- 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- Hinged metal belt and pulley cover
- Large Hand Grips designed with the users comfort in mind
- On/off switch located on front of the drill press head
- Rotating, 45° tilting, crank-operated worktable with quick release clamp
- Spindle is supported by high quality ball bearings
- Table ground for accuracy
Specifications
- Stock Number JT9-354301
- Base Dimensions (In.) 22-5/8 x 19-7/16 x 3-3/8
- Base Work Table (In.) 21-1/2 x 18-5/16
- Chuck Size (In.) 5/8
- Column Diameter (In.) 3-5/8
- Distance Column to Spindle (In.) 10-7/8
- Drilling Capacity Cast Iron (In.) 1-1/4
- Drilling Capacity Mild Steel (In.) 1
- Drills to Center of Circle (In.) 22
- Model Number IDP-22
- Motor (HP) 1-1/2HP, 115/230V, 1Ph
- Number of Spindle Speeds 12
- Overall Dimensions (L x W x H) (In.) 35 x 19 x 67
- Prop 65 Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM) 175 - 3,050
- Spindle Distance to Base (In.) 48-1/2
- Spindle Distance to Table (Max.) (In.) 28
- Spindle Taper (In. x TPI) MT-3
- Spindle Travel (In.) 4-13/16
- Style (Type) Belt Drive
- T-Slot Centers (In.) 3/4
- T-Slots Number and Size (In.) 2 and 5/8
- Table Size (L x W) (In.) 18-5/8 x 16-1/8
- Weight (Lbs.) 364
- Work Table Weight Capacity (Lbs.) 176
| Item Number | 354301 |
|---|---|
| Weight | 364.000000 |
