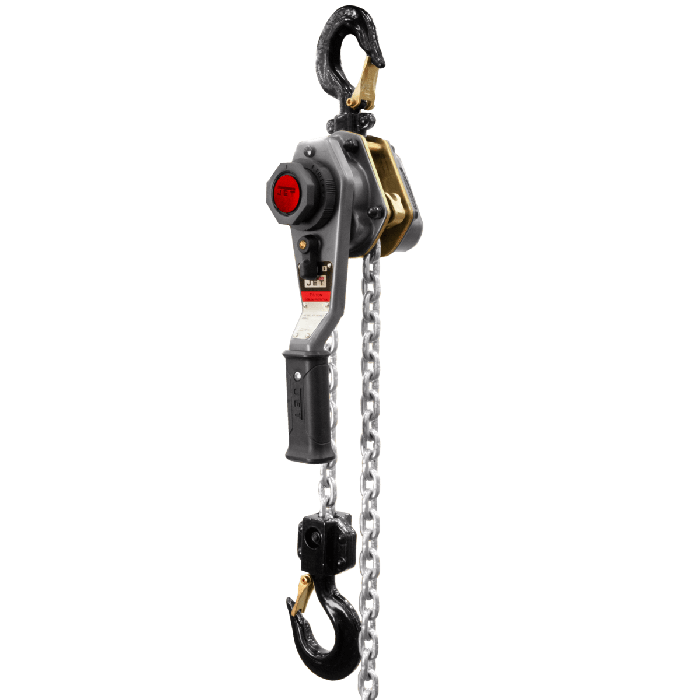

JLH SERIES 1-1/2TON LEVER HOIST 10' LIFT WITH OVERLOAD PROTECTION

Call for Price
Pre Order Today
Item Number
376301

JET® JLH Series Lever Hoists incorporate safety, durability, and heavy duty construction for operation in severe industrial environments. Safety comes standard with features such as slip clutch style overload protection, which prevents the Lever Hoist from lifting or pulling damaging loads beyond its rated capacity. The lightweight design, shorter handle, and smaller body are ideal for confined areas and low headroom applications. Backed by a lifetime replacement warranty, JET’s revolutionary single-piece brake design fuses the three components into the safest brake system in the market. The JET® JLH Series is available in ¼ ton to 9 ton capacities, with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). Whether it’s inverted, vertical, horizontal, or any other load angle, the JET® JLH Lever Hoist is the solution for your heavy-duty industrial needs.

Features

  • All steel construction
  • Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Enhanced ergonomic grip allows for greater operator control and increased comfort
  • Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
  • Heat Treated Load Plates
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security

Specifications

  • Stock Number JT9-376301
  • Headroom (in.) 13-1/5
  • Capacity (Lbs.) 3520
  • Lift (Ft.) 10
  • Load Capacity (Tons) 1-1/2
  • Load Chain Dimensions dia/mm) 7.1 x 19.9
  • Model Number JLH-150WO-10
  • Prop 65 Cancer and Reproductive Harm
  • Weight (Lbs.) 21
  • Lever Length (in.) 10-1/4
  • Lbs. of Pull to Lift Capacity 75.0000
More Information
Item Number 376301
Weight 25.000000
Vendor Part Number JT9-376301
