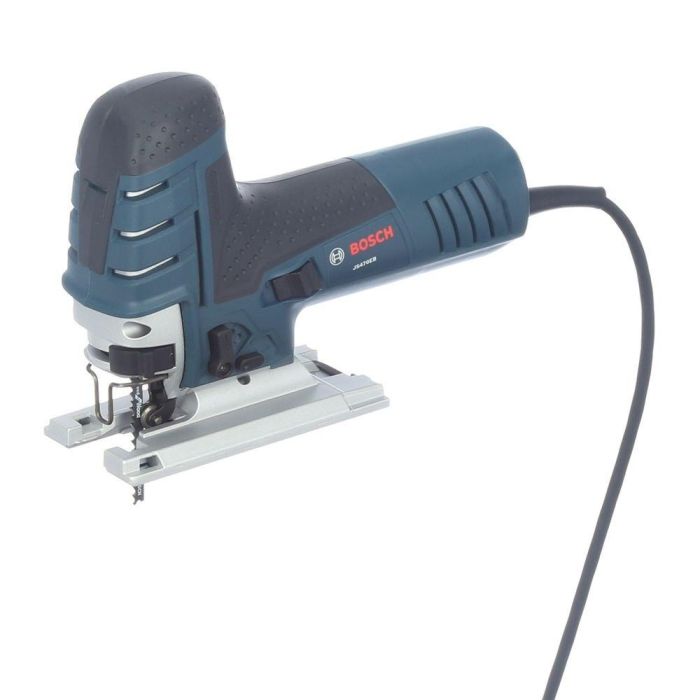

BOSCH BARREL GRIP JIG SAW (7.0AMP)
The Bosch JS470EB Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute – with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox. This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
Features
- Large die-cast aluminum footplate – provides a no-mar plastic overshoe
- Ergonomic body – features an upfront grip area for maximum control, precision and comfort
- Soft-grip areas – offers a solid, comfortable grip
- Powerful 7.0 Amp motor – delivers up to 3,100 strokes per minute
- Variable-speed control – includes a dial to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – provides durability
- Toolless blade-change system – permits fast blade insertion
- Ejection lever – eliminates the need to touch hot blades
- Four orbital-action settings – varied blade strokes
- Internal precision control – precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
- Dust blower with on/off switch – keeps the cut line visible and free of dust
- Fully counterbalanced low-vibration mechanism – ensures extremely smooth operation
Specifications
- Amperage 7.0
- Cutting Capacity- Soft Wood 5-7/8"
- Cutting Capacity-Aluminum 0.875
- Cutting Capacity-Mild Steel 0.375
- Jig Saw Blade Type Jig Saw T-Shank
- Length 7.0"
- No Load SPM 500-3,100
| Item Number | JS470EB |
|---|---|
| Weight | 30.000000 |
