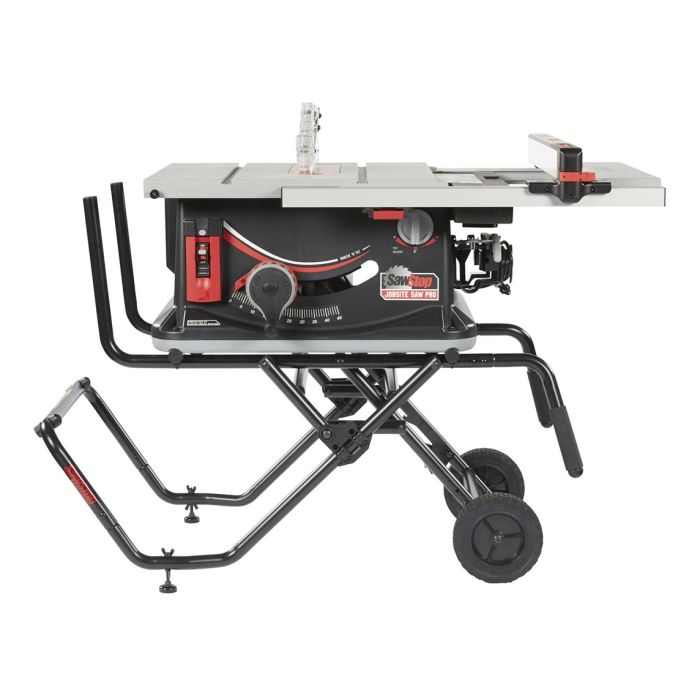

SawStop Jobsite Saw Pro 15AMP 120v w/ Mobile Cart Assembly

$1,599.00
In stock
Only 2 left
Item Number
JSS-120A60

The SawStop® Jobsite Saw Pro delivers durability, innovation and precision with a design that’s built for the worksite.

Features

  • SAWSTOP’S PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
  • CLASS-LEADING FEATURES: 24 5/8” table depth allows a larger surface to make safe and accurate cuts from. Included Active Dust Collection Guard for class-leading dust management. One-turn elevation allows the user to raise and lower the blade in a single turn, and the Quick-Tilt adjustment tilts the blade easily and quickly to the ideal angle in 1-degree increments.
  • HIGH-LOW T-STYLE FENCE WITH ERGOLOCK: The updated Jobsite Saw T-Style Fence slides smooth and lock firm with one touch. Extend the On-Demand shelf for added support, and use the low fence face for safer cutting of thin work pieces.
  • EASY MOBILITY: Simple, intuitive foot pedal extends the mobile cart for use and collapses the cart for transport.
  • ONBOARD STORAGE: Keep the accessories contained and protected in the onboard storage drawer. Find the Active Dust Collection Guard, riving knife, miter gauge and more, all ready for quick use.
  • RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.

Specifications

  • Model Option: 10" Jobsite Saw PRO w/mobile cart & high/low fence system
  • Motor Configuration: 120 VAC 60 Hz, Universal
  • Amperage: 15A
  • Cord Length: 116"
  • Sold and Shipped as Full Set Only with Cart : (no Cartless Option Available)
  • Motor Continuous HP: 1.5 HP
  • Motor Peak HP: 4 HP
  • Saw Dimensions without Cart (Body only): 31-3/4" W x 28-3/4" D x 15-1/2" H
  • Saw Dimensions with Open Cart (ready to use): 48" W x 29" D x 36" H
  • Saw Dimensions with Closed Cart (on End/stored position): 26-1/2" W x 29" D x 45" H
  • Table Dimensions (Retracted): 31-1/4" W x 24-5/8" D
  • Table Dimensions (Extended): 43-3/8" W x 24-5/8" D
  • Shipping Dimensions: 32" W x 43" D x 26" H
  • Shipping Weight (with Cart): 137 lbs
  • Weight (Saw Only): 84 lbs
  • Weight (with Cart): 113 lbs
  • Blade Diameter: 10"
  • Dado Diameter: 8"
  • Dado Max. Width: 29/32”
  • Bevel Angle Range: -1 to 46
  • Max. Depth of Cut, Blade at 0º: 3-1/8"
  • Max. Depth of Cut, Blade at 45º: 2-1/8"
  • Max. Rip Right of Blade (Extended): 25-1/2"
  • Max. Rip Left of Blade: 9-3/4"
  • Blade Tilt: Left
  • Arbor Diameter at Blade: 5/8"
  • Table in Front of Blade (Max Elev): 7-7/8"
  • Table Behind Blade (Max Elev): 7-3/8"
  • Miter Slots T-shaped Dimensions: .754" W x .413" D; "T" .956" W x .157" THK
  • Main Bearing Size: 62mm OD x 30mm ID x 16mm W
  • Second Bearing Size: 52mm OD x 25mm ID x 15mm W
  • Riving Knife/Splitter Thickness: 2.3mm (.090")
  • Hand Wheel: Effective diameter 6.3"
  • Belts: Poly-V static dissipative belt
  • Table Flatness Measured Diagonally: 0.033" Inches
  • Dust Collection Port Diameter: 2-9/16" Outside, 2-1/4" Inside
  • Active Dust Collection Blade Guard: polycarbonate, extends 1" right of blade
  • Blade Guard (Dust Collection) Port Diameter: 1-11/16" Outside, 1-3/8" Inside
More Information
Item Number JSS-120A60
Weight 140.000000
