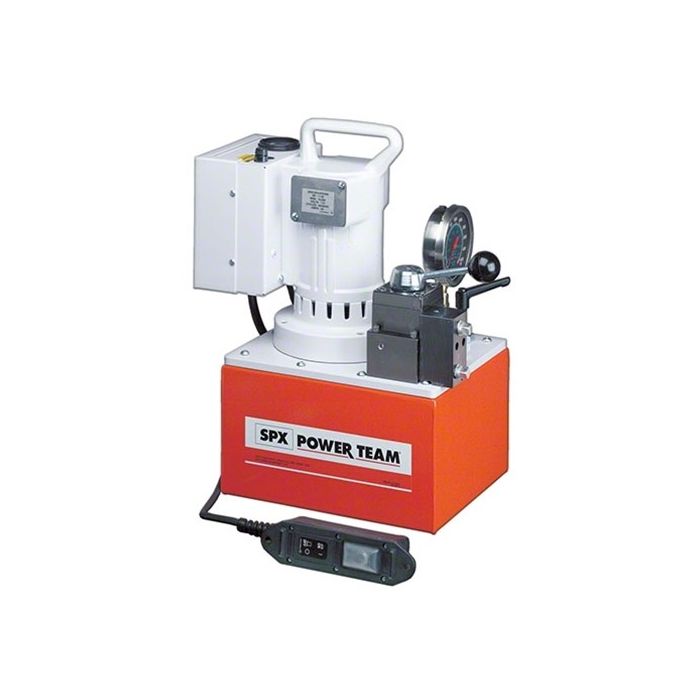

SPX ELECTRIC PUMP 110/115VAC

Specifications

• Pump type: Electric 2-Speed Pump
• Reservoir capacity (cubic inches): 577.5 in³
• For use with: Single-Acting Cylinders
• Usable oil capacity: 525.0 in³
• Power rating:   1-1/8 hp
• Typical flow at max psi: 56 in³/min
• Voltage: 110/115 V
• Typical flow at 10000 psi: 56 in³/min
• Frequency: 50/60 Hz
• Typical flow at 5000 psi: 74 in³/min
• Amperage: 25.0 A
• Typical flow at 700 psi: 440 in³/min
• Motor phase: 1 ph
• Typical flow at 0 psi:  704 in³/min
• Max rpm: 12000 rpm
• Maximum pressure: 10000 psi
• Sound level at idle/10000 psi: 90/89 dBA
• Valve type: 3-Way, 2-Position Solenoid Valve
• Overall length: 14.000 in
• Valve type/function: 3-Way, 2-Position / Advance Hold Return
• Overall width: 9.500 in
• Overall height: 18.250 in
• Control switch: Remote Motor
• Weight: 65.00 lbs
• Reservoir capacity: 2.50 gal

• Heavy duty multiple applications pump for heavy construction and concrete stressing up to 200 tons
• 1-1/8 hp, 12,000 rpm, 110/115 volt, 50/60 Hz universal motor; draws 25 amps at full load, starts at reduced voltage. CSA rated for intermittent duty
• 10 foot remote motor control (except PE552S which has a 25 foot remote motor and valve control)
• True unloading valve achieves greater pump efficiency, allowing higher flows at maximum
• Reservoirs available in sizes up to 10 gallons
• Light weight and portable. Best weight to performance ratio of all Power Team pumps
• Power Team’s "Assemble to Order" system allows you to choose from a wide range of pre-engineered, off-the-shelf components to build a customized pump to fit specific requirements. By selecting standard components, you get a "customized" pump without "customized" prices. All pumps come fully assembled, less oil, and ready for work
