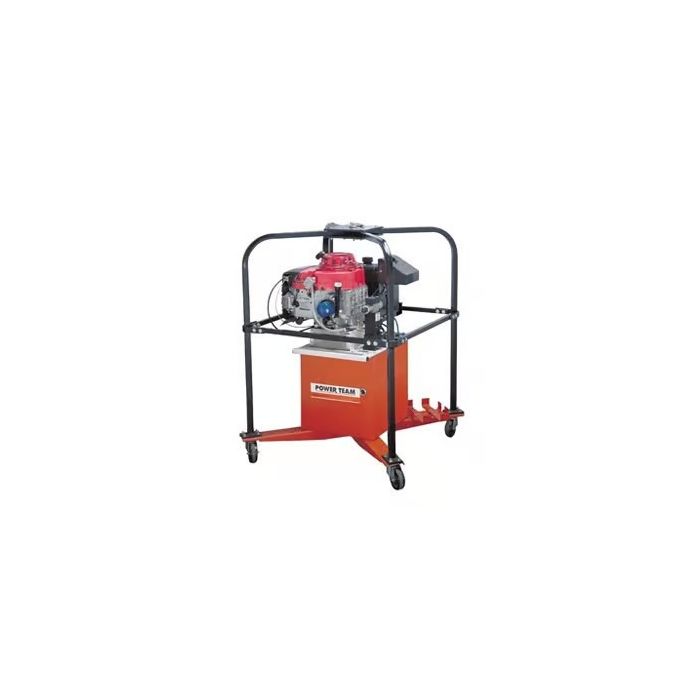

SPX POWER TEAM DOUBLE ACTING MAX OUTPUT GASOLINE POWERED PUMP

Features

• Two-speed high performance pumps ideal for construction, structure moving and rigging applications
• A logical choice at work sites where electricity or compressed air are unavailable; for single or double-acting cylinders at operating pressures to 10,000 psi
• All gasoline engine/hydraulic pumps feature Posi-Check® valve to guard against pressure loss when valve is shifted from "advance" to "hold"
• PG1200 Series pumps powered by a Honda 4-cycle, 5.5 hp engine with automatic decompression and electronic ignition; deliver over 1/2 gallon (130 in³) of oil per minute at 10,000 psi
• A 5.7 gallon reservoir means adequate capacity for multi-cylinder applications; a dual element air cleaner protects engine from dusty environments
• Heavy duty "roll cage" provides pick-up points for lifting
• Rubber anti-skid insulation on bottom of reservoir resists skidding and dampens vibration; includes a pump cart with 12" wheels
• Adjustable external pressure regulator
• For single or double-acting cylinders with precise individual control of up to four cylinders possible
• Equipped same as PG1200M-4, except has 9506 4-way/3-position (tandem center) valve, and second 4-port manifold without needle valves mounted beneath 9644 manifold for operating double-acting cylinders
