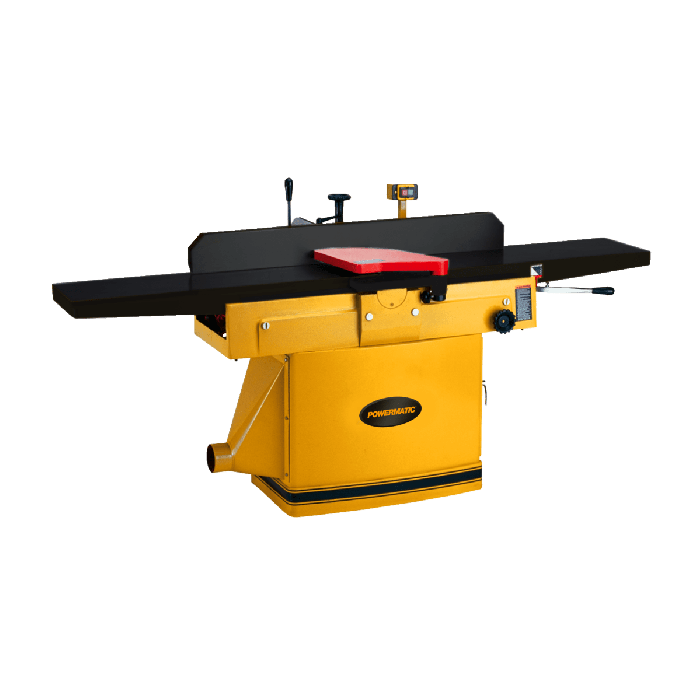

POWERMATIC 1285T 12" PARALLELOGRAM JOINTER W/ ARMORGLIDE 1PH 230V
Pre Order Today
Item Number
PM1-1791307T
The Powermatic 1285T, 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a helical cutterhead.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
- Helical cutterhead features 42 two-sided carbide inserts for fast knife changes with no adjustments and a quiet, clean cut
- Large 12" x 84" precision ground cast iron table surface for heavy-duty work
- Parallelogram design ensures close table-to-cutterhead proximity and fast depth of cut adjustments
- Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
- Table "lips" on both sides of cutterhead aid in noise reduction
Specifications
- Stock Number PM1-1791307T
- Cutterhead Speed (RPM) 5000.0000
- Cutting Capacity (W x D) (In.) 11-3/4 x 3/4
- Dust Collection Minimum CFM Required (CFM) 800
- Dust Port Outside Diameter (In.) 4
- Model Number 1285T
- Motor Power (HP) 3
- Motor Voltage (V.) 230
- Number of Knives 44
- Prewired Voltage (V.) 230
- Prop 65 Cancer and Reproductive Harm
- Recommended Circuit Size (Amps.) 30
- Type of Cutterhead HELICAL
| Item Number | PM1-1791307T |
|---|---|
| Weight | 200.000000 |
