POWERMATIC PM1300TX-BK DUST COLLECTOR 1.75HP 1PH 115/230V, 30-MICRON BAG KIT
Pre Order Today
Item Number
PM9-1791078K

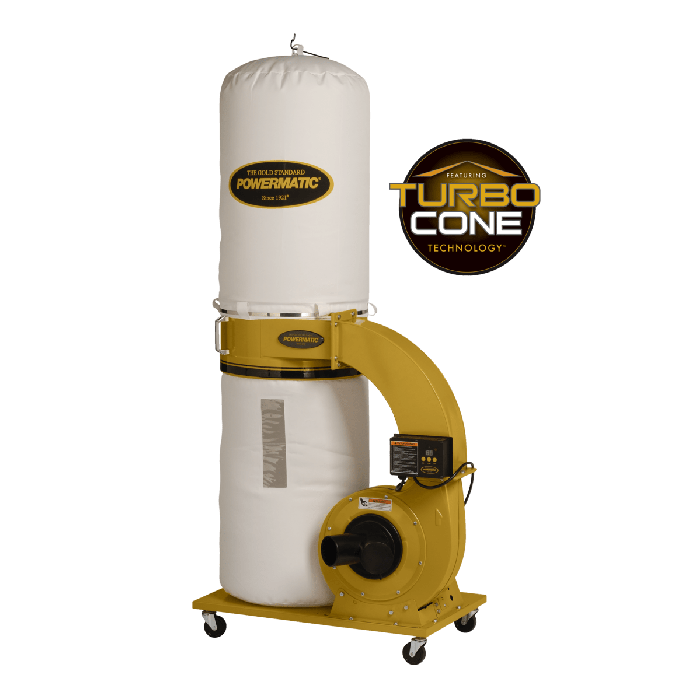

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
Features
- 10 Cubic feet capacity collection bag reduces number of bag changes
- All-metal duct construction for rigidity and improved air flow
- Cloth collection bag with view window uses snap ring for rapid installation/removal
- Dual 4" dust ports for simultaneous collection from two machines
- Eliminates premature filter clogging for sustained performance
- Four swivel casters for easy maneuverability
- Remote-controlled digital timer can be programmed for up to 99 minutes
- The large steel impeller is powered by a 1-3/4HP motor for peak performance.
- TurboCone™ improves chip separation and collector bag packing efficiency
Specifications
- Stock Number PM9-1791078K
- 1-Hose Connection Diameter (In.) 6
- 2-Hoses Connection Diameter (In.) 4
- Bag Diameter (In.) 20
- Collection Bag Length (In.) 30
- Efficiency (Micron) 30
- Filter Bag/Canister Length (In.) 48
- Gross Weight (Lbs) 150
- Impeller Diameter (In.) 12
- Impeller Fins 6
- Impeller Material Steel
- Model Number PM1300TX-BK
- Motor Amps 18/9
- Motor Power (HP) 1-3/4
- Motor Voltage (V.) 115/230
- Net Weight (Lbs.) 140
- Overall Dimensions (L x W x H) (In.) 37 x 29 x 79
- Prewired Voltage (V.) 115
- Prop 65 Cancer and Reproductive Harm
- Sound Rating (Db.) 75-90
- Static Pressure (Wc.) 11.31
- Style (Type) Dust Collector
| Item Number | PM9-1791078K |
|---|---|
| Weight | 150.000000 |
