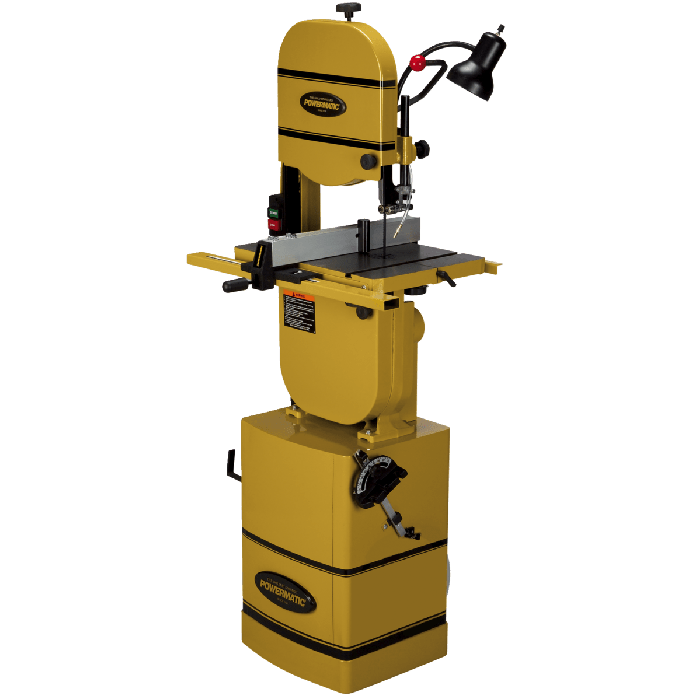

POWERMATIC 14" BANDSAW W/ STAND AND RISER BLOCK
Pre Order Today
Item Number
PM9-1791216K
Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Features
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Carter™ quick tension lever speeds blade changes and the detension setting extends blade life during non-use
- Chip blower ensures a clean, visible cut line
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
- Easy to read tensioning gauge settings indicated in "blade width" increments
- Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
- Includes 6" riser block
- Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
- Rigid one-piece welded stand requires no assembly
- Upper and lower dual ball bearing guides for accurate cuts
Specifications
- Stock Number PM9-1791216K
- Band Saw Size/Wheel Diameter (In.) 14
- Blade Length (In.) 93-1/2
- Blade Speed (SFPM) 3000
- Dust Collection Minimum CFM Required (CFM) 600
- Dust Port Outside Diameter (In.) 4
- Minimum Saw Blade Width (In.) 1/8
- Model Number PWBS-14CS
- Motor Power (HP) 1.5
- Motor Voltage (V.) 115/230
- Prewired Voltage (V.) 115
- Prop 65 None
- Recommended Circuit Size (Amps.) 30/20
- Table Height from Floor (In.) 44
- Table Tilt (Deg.) 45 Right / 10 Left
| Item Number | PM9-1791216K |
|---|---|
| Weight | 200.000000 |
