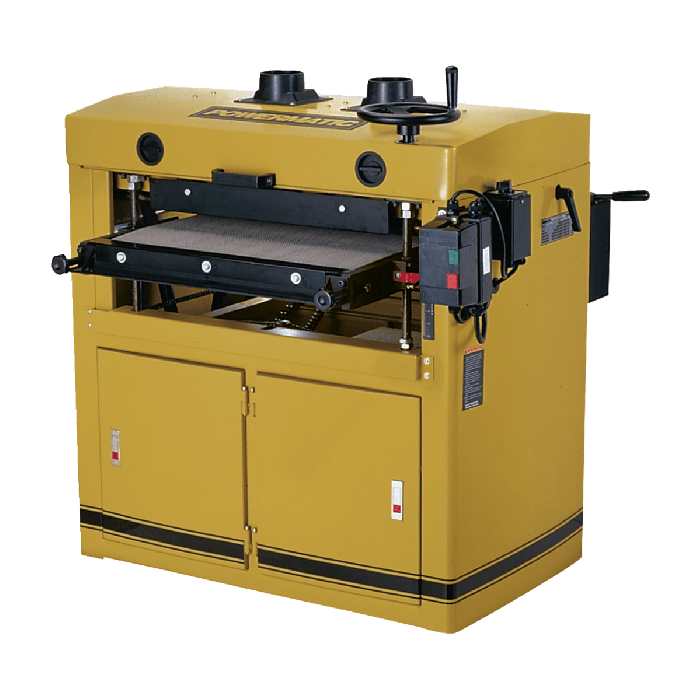

POWERMATIC 25" DUAL DRUM SANDER 5HP 1PH 230V
Pre Order Today
Item Number
PM9-1791290
Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.
Features
- Dual drum head for superior finish
- Dual dust ports with directional baffles for more efficient dust removal
- Forward/reverse conveyor belt grips stock evenly
- Full size cast iron table for solid support
- Hard durometer rubber coating on steel drums provides flat, smooth finish
- Independently adjustable rear drum for fine tuning
- Two-speed gearbox for wide range of sanding projects.
Specifications
- Stock Number 1791290
- Conveyor Speed (FPM) 8 and 12
- Drum Diameter (In.) 6
- Drum Length (In.) 25
- Drum Speed (RPM) 1,700
- Dust Collection Minimum CFM Required (CFM) 600
- Dust Port Outside Diameter (In.) 4
- Maximum Board Thickness (In.) 5-1/4
- Maximum Board Width (In.) 25'
- Minimum Board Length (In.) 9
- Minimum Board Thickness (In.) 1/32
- Model Number DDS-225
- Motor Power (HP) 5
- Prop 65 Cancer and Reproductive Harm
- Recommended Circuit Size (Amps.) 40
- Style (Type) Dual Drum
- Weight (Lbs.) 730
| Item Number | PM9-1791290 |
|---|---|
| Weight | 750.000000 |
