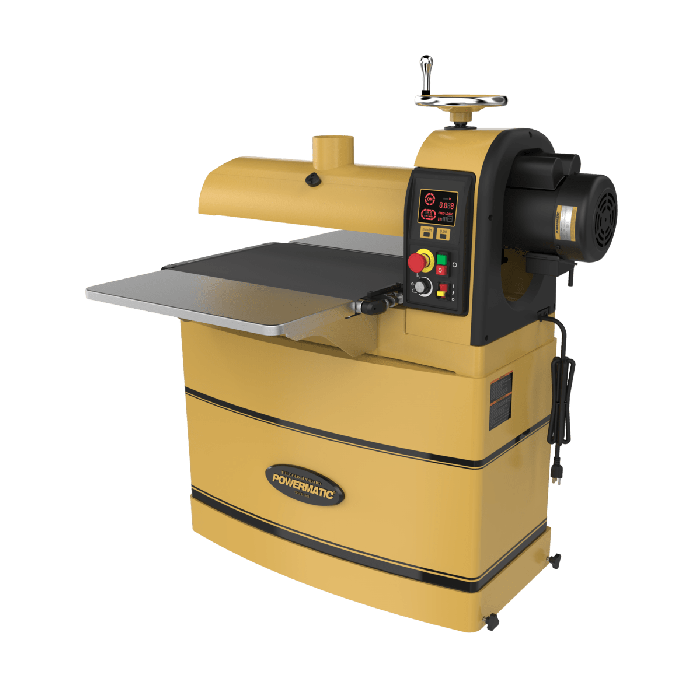

POWERMATIC PM2244 DRUM SANDER 1-3/4HP 115V
Pre Order Today
Item Number
PM9-1792244
The PM2244 woodworking drum sander will exceed your expectations with its world-class design, usability and sophistication.
Features
- Belt tracking is designed to reduce the need for manual adjustment
- Closed stand with storage for keeping abrasives organized
- Drum carriage is designed to provide strength and consistent performance over time
- Emergency stop for quick shutoff
- Included infeed/outfeed tables provide 37-1/2 inches of support for the workpiece
- Integrated casters make it easy to move unit around the shop
- Integrated LED Control Panel shows power, belt speed, and DRO
- Large, chrome handwheel makes adjusting the drum height smooth and simple
- Table parallelism is adjusted with a dial on the outside of the conveyor bed, eliminating adjustments to the entire drum carriage
- The feed logic system monitors the load on the drum motor and regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Specifications
- Stock Number 1792244
- Conveyor Speed (FPM) 0 to 10
- Drum Bearing Diameter (In.) 5
- Drum Diameter (In.) 5
- Drum Length (In.) 22
- Drum Speed (RPM) 1720
- Dust Collection Minimum CFM Required (CFM) 800
- Dust Port Outside Diameter (In.) 4
- Maximum Board Thickness (In.) 4
- Maximum Board Width (In.) 22"
- Minimum Board Length (In.) 2-3/8
- Minimum Board Thickness (In.) 1/32
- Model Number PM2244
- Motor Amps 14
- Motor Power (HP) 1-3/4
- Number of Sanding Drums 1
- Prop 65 Cancer and Reproductive Harm
- Recommended Circuit Size (Amps.) 20
- Style (Type) Drum Sander
- Weight (Lbs.) 328
| Item Number | PM9-1792244 |
|---|---|
| Weight | 350.000000 |
