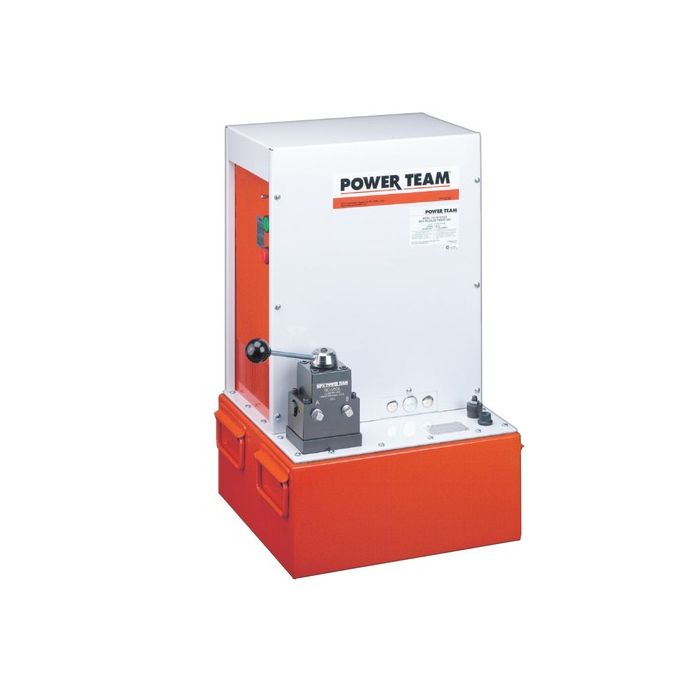

SPX POWER TEAM DOUBLE ACTING UP TO 400 TON ELECTRIC HYDRAULIC PUMP

Specifications

• FOR USE WITH CYLINDER TYPE Double-Acting
• VALVE FUNCTION Advance
• MOTOR 3 hp (2,24 kW), 460V 60 Hz (400V 50 Hz), 3 Phase
• AMP DRAW (230 V @ 10,000 PSI [460 V @ 10,000 PSI]) 10.5 Amps [5,3 Amps]
• RPM @ 60 HZ [RPM @ 50 HZ] 1,725 [1.437]
• RESERVOIR USABLE (CU. IN. [L]) 1,250 [20]
• MAXIMUM PRESSURE OUTPUT (PSI [BAR]) 10,000 [700]
• DBA @ IDLE AND 10,000 PSI [700 BAR] 73
• OIL DELIVERY (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR]) 730 [9,7]
• OIL DELIVERY (CU. IN./MIN. @ 1,000 PSI [L/MIN. @ 70 BAR]) 160 [2,1]
• OIL DELIVERY (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 350 BAR]) 130 [1.7]
• OIL DELIVERY (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 700 BAR]) 120 [1,6]
