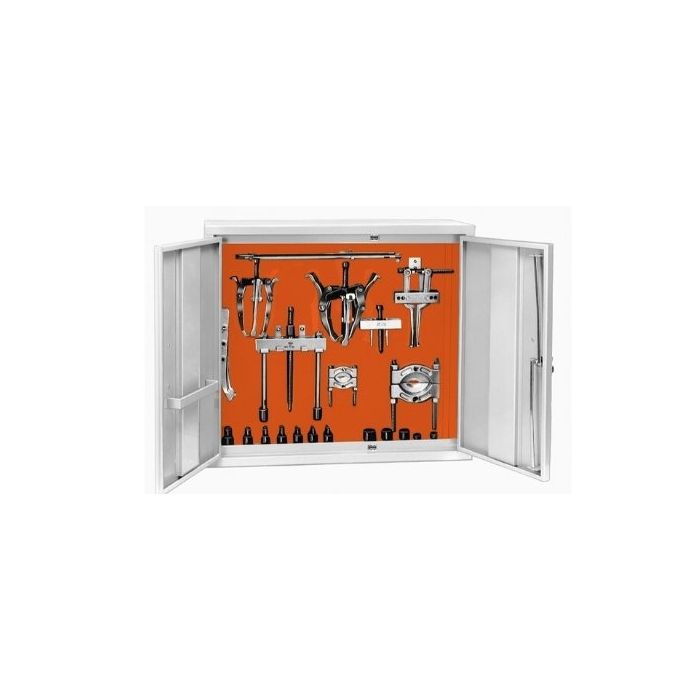

SPX 17.5/50 TON MANUAL/HYDRAULIC PULLER SET
Pre Order Today
Item Number
IPS5017
17 1/2 and 50 Ton Capacity Hydraulic Puller Sets
If you are looking for a maintenance puller set that will handle a wide variety of applications, this one is for you. The mechanical and hydraulic pullers and attachments are designed to handle most removing and installing jobs with a minimal amount of effort.
Includes
Hydraulics
- P55 Hand Pump, 1-Speed, .160 cu. in./stroke
- RT172 Cylinder, 17 1/2 Ton, 2" stroke
- RT503 Cylinder, 50 Ton, 3" stroke
Pullers
- 1027 2/3-Jaw Puller Manual 5 Ton Rev
- 1037 2/3-Jaw Puller Manual 7 Ton Rev
- 1041 2/3-Jaw Puller Manual 13 Ton Std
- 1062 Push/Pull Puller 17.5 / 30 Ton with 16 1/2" legs
- 1066 3-Jaw Puller 17.5 Ton
- 1076 Push/Pull Puller 50 Ton with 24” legs
- 1080 3-Jaw Puller 50 Ton
- 1105 22.5" Legs Push/Puller 17.5 ton for 1062
- 1113 34" Legs Push/Puller 50 ton for 1076
- 30902 3 Long Replacement Jaws for 1041
- 41224 2-Jaw Puller Head 17.5 Ton
- 43892 3 Long Jaws Replacement for 1037
- 50449 2 Way Head 50 Ton
Accessories
- 1122 Bearing Pulling Attachment 17.5 / 30 Ton
- 1123 Bearing Pulling Attachment 17.5 Ton
- 1126 Bearing Pulling Attachment 30 Ton
- 1127 Bearing Pulling Attachment 30 Ton
- 1130 Bearing Pulling Attachment 17.5 Ton
- 1154 Internal Pulling Attachment, 4" Reach
- 1166 Internal Pulling Attachment for PPH30
- 7392 Gear and Pulley Puller 13"
- 8056 Puller Shaft Protector Set
- 8075 Puller Step Plate Adapter Set - Small
- 8076 Puller Step Plate Adapter Set - Large
- 9059 Gauge 4" 3 Scale RT, Dry 2000 psi
- 9670 Tee Adapter 1/4", 3/8" NPTF F, 3/8" NPTF M
- 9767 Hose, Polyurethane .25" Internal Diameter, 6’
- 9798 2 Half Couplers, Hydraulic, 3/8" NPTF M
- 10215 Hex. nut; 3/4" - 16 (2)
- 24814 Cylinder Speed Crank 17.5 Ton
- 24829 Stud (2)
- 24833 Forcing screw for 7392
- 28228 Cylinder Cap 17.5 Ton
- 28230 Cylinder Screw Cap 50 Ton
- 29595 Cylinder Speed Crank 50 Ton
- 32118 Cylinder Adjusting Screw 1 - 8 x 20.00
- 32698 Cylinder Adjusting Screw 1-5/8" - 5-1/2 Threaded 30" Long
- 34479 Reducing Adapter for 1166
- 34755 Cylinder Pushing Adapter 50 Ton
- 350680 Molded Tool Box
- 201923 Clamp Pushing Adapter 10 Ton 0.5" Nose
- 308439OR9 Wooden storage box, 46.5 x 22.5 x 30
Threaded Adapters:
- 8005 Puller Threaded Adapter 5/8" – 18 F x 3/8" – 16 M (2)
- 8006 Puller Threaded Adapter 5/8" – 18 F x 1/2" – 20 M (2)
- 8007 Puller Threaded Adapter 5/8" – 18 F x 1/2" – 13 M (2)
- 8010 Puller Threaded Adapter 5/8" – 18 F x 5/8" – 11 M (2)
- 8013 Puller Threaded Adapter 5/8" – 18 F x 3/4" – 16 M (2)
- 8015 Puller Threaded Adapter 5/8" – 18 F x 3/4" – 10 M (2)
- 8019 Puller Threaded Adapter 5/8" – 18 F x 1" – 14 M (2)
- 8020 Puller Threaded Adapter 1" – 8 F x 5/8" – 18 M (1)
- 8021 Puller Threaded Adapter 1" – 8 F x 1" – 14 M (1)
- 8023 Puller Threaded Adapter 1-1/4" - 12 F x 1" - 14 M (2)
- 8028 Puller Threaded Adapter 1-5/8" - 5 1/2 F x 1" - 8 M (1)
- 8029 Puller Threaded Adapter 1-5/8" - 5 1/2 F x 1" - 14 M (1)
- 8038 Puller Threaded Adapter 5/8" –18 F x 3/4"–16 F (2)
- 8044 Puller Female Threaded Adapter Set
| Item Number | IPS5017 |
|---|---|
| Weight | 230.000000 |
