REVERSIBLE VIBRATORY PLATE TAMPER
Pre Order Today
Item Number
BPU2540A

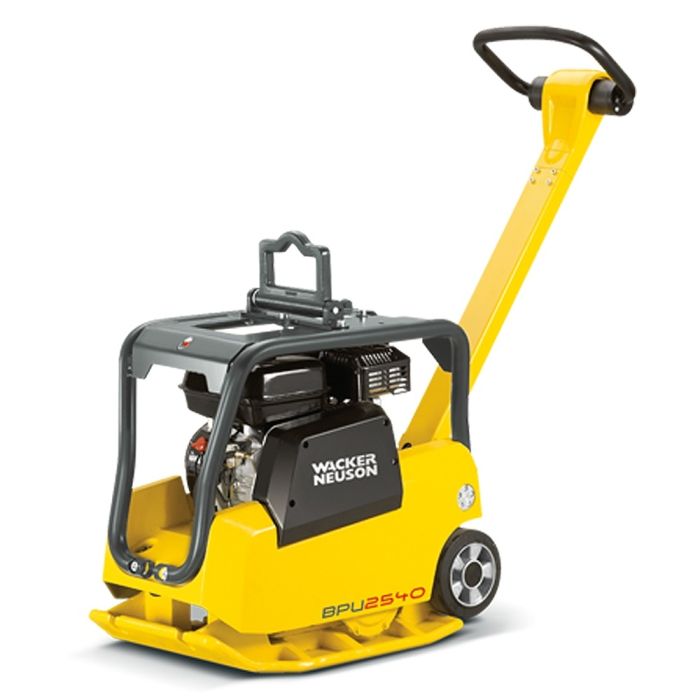

The Wacker Neuson BPU2540A Reversible Compactor is the smallest reversible plate in their line-up. It offers excellent compaction results with added job site versatility. The unique integrated wheel set simplifies the task of moving a reversible plate around the job site and shop floor. This is an ideal plate for compaction of interlocking paving stones, trenches, paths, sidewalks and maintenance jobs.
Specifications
- Operating weight 309 lbs | 140 kg
- Working width 15.8 in
- Machine height 25.5 in
- Working height of handle (adjustable) 31.5 - 45.0 in
- Base plate thickness 0.4 in
- Max. centrifugal force 5.625 lbs
- Vibration frequency 90 Hz
- Max. forward and reverse travel 68.9 ft/min
- Gradeability up to 30%
- Compacted area (depending on soil) 5.425ft2/h
- Drive engine Honda Gas | Air-cooled, 4-cycle, single cylinder
- Max. power output (@3600 rpm) 5.5 hp
- Rated power output (@2800 rpm) 2.0 hp
- Run Time 4.75 hr
- Tank capacity 3.9 US qt
- Max. allowable tilt of engine in continuous operation 20°
| Item Number | BPU2540A |
|---|---|
| Weight | 300.000000 |
| Vendor Part Number | 5000610360 |
