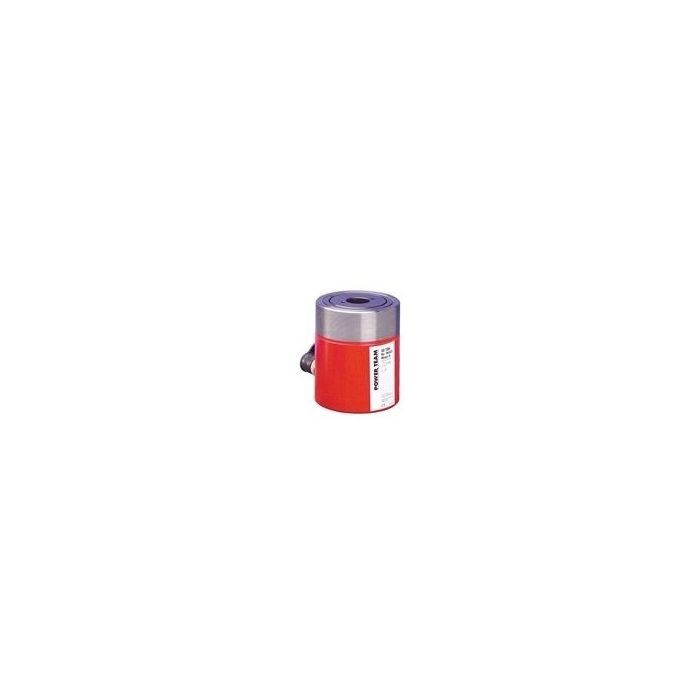

SPX SINGLE ACTING 10 TON 2-1/2 STROKE CENTER HOLE

Features

• Center hole cylinder ideal for pulling and tensioning cables, anchor bolts with interchangeable piston head inserts
• Interchangeable piston head inserts (provide versatility of application)
• 12, 20, 30, 50, 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full "dead-end" loads
• Corrosion resistant standpipe has "Power Tech" treatment
• All cylinders except RH120 are furnished with a 9796 3/8" NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

Specifications

• Cyl. Cap. (tons): 12
• Stroke (in.): 5/16
• Oil Cap. (cu. in.): 0.87
• Mounting Holes and Bolt Circle (in.): 5/16-18x2
• Cylinder Effective Area (sq. in.): 2.76
• Internal Pressure at Cap. (psi): 8,692
• Tons at 10,000 psi (in.): 13.8
• Weight (lbs.): 3
• Retracted Height (in.): 2 3/16
• Ex- tended Height (in.): 2 1/2
• Outside Dia. (in.): 2 3/4
• Collar Thread (in.): 2 3/4-16
• Collar Thread Length (in.): 1-1/4
• Base to Port (in.):3/8
• Piston Rod Dia. (in.): 1-3/8
• Center Hole Dia. (in.): 11/16
• Insert Thread Size (in.): ¾ - 16
