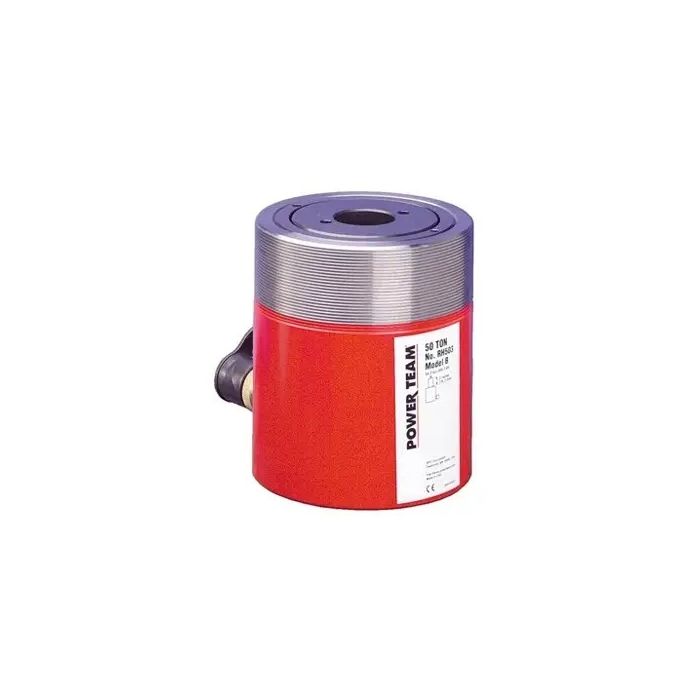

SPX 50T CENTER HOLE CYLINDER 3" STROKE

Specifications

• Single-Acting
• Spring-Return
• Ideal for pulling and tensioning of cables; anchor bolts; forcing screws; etc.
• Interchangeable piston head inserts provide versatility of application.
• Threaded Collar
• Withstands full indead-endin loads.
• Corrosion resistant standpipe has inPower Techin treatment.
• All cylinders except RH120 are furnished with a 9796 3/8" NPT female half coupler.
• Aluminum cylinder body and piston are featured on the RHA306 cylinder.
• ASME B30.1
• 10000 psi
• Cylinder Capacity 50 ton
• Stroke 3.0 in
• Oil Capacity 32.58 in
• Retracted Height (A) 7 1/8 in
• Extended Height (B) 10 1/8 in
• Outside Diameter (C) 6 in
• Collar Thread (D) 6-12 in
• Collar Thread Length (E) 2 in
• Base to Port (F) 1 1/4 in
• Piston Rod Diameter (H) 4 1/8 in
• Center Hole Diameter (N) 1 43/64 in
• Insert Thread and Size (O) 3 1/4 - 12 in
• Mounting Holes Bolt Circle 5/8 -18 x 4 3/4 in
• Cylinder Effective Area 10.86 in
• Internal Pressure at Cap. 9208 psi
• Tons at 10;000 psi 54.3
• Product Weight 46.6 lb
• Material Aluminum
