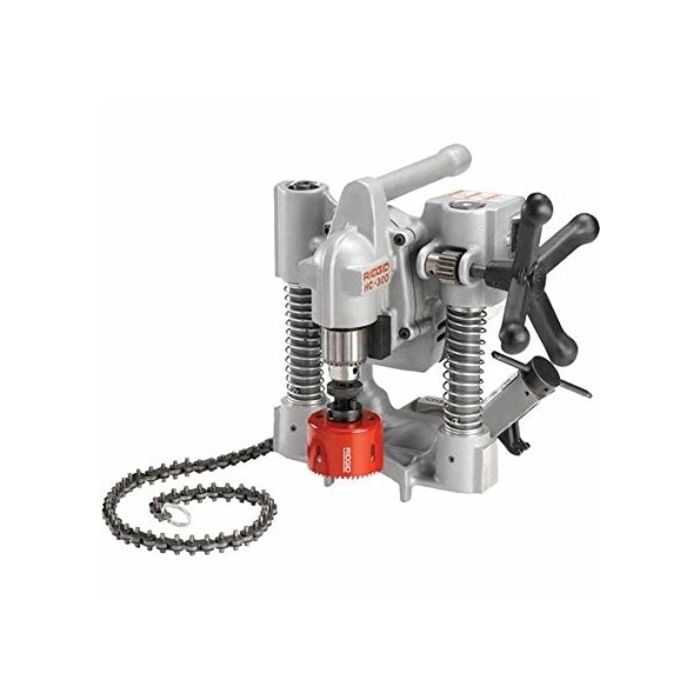

RIDGID HOLE CUTTER, HC300 120V
Ridgid 76777 115 Volt Model HC300 3" Hole Cutting Tool is designed to cut holes up to 3" diameter into Steel pipe. The multiple hole Size allows the use of Fittings such as Mechanical THookersVic-O-LetWeld-O-Let and others for branching unpressurized pipelines. The HC300 features a 1/2" Capacity chuck to accommodate all Sizes of holes up to 3" diameter and standard hole Saw Arbors up to 7/16" Hex (1/2" chuck Size). An integral motor and gear Reduction optimizes the performance and Saw life in the Capacity range. A single-feed Handle and ON/OFF switch allows for easy operation. The HC300 compact two-piece design allows the HC300 to be used in tight quarters and difficult-to-reach locations. This Hole Cutting Tool features Quick Connecting Two-piece Design. This unique design allows for easy Mountingtransport and set up. In additionweighing only 31 lbs.the unit can be broken down into two Lighter weight units for maximum transport and operation comfort. Single-hand Chain Latching. High Speed. With a powerful 1.2HP11 amp motorthe Model HC300 delivers 360 RPM to quickly bore holes while optimizing hole Saw life. High Speed. With a powerful 1.2HP11 amp motorthe Model HC300 delivers 360 RPM to quickly bore holes while optimizing hole Saw life
Features
- Quick Connecting Two-piece Design - This unique design allows for easy mounting, transport and set up. This is particularly useful when working off a ladder or overhead.
- Single-Hand Chain Latching - The Model HC-300 features a patented spring-loaded chain that saves time and significantly aids set up and operation.
- Ergonomic Design - With all controls at the operator’s fingertips, the tool has been designed for maximum productivity.
- High Speed - With a powerful 1.2 HP, 11 Amp motor, the Model HC-300 delivers 360 RPM to quickly bore holes while optimizing hole saw life.
- Horizontal and Vertical Flats - Ensures perpendicular cutting.
Specifications
- Hole Cutting Capacity Up to 3" (76 mm).
- Pipe Diameter Mounting Range 1-1/2" (38 mm) to 8" (200 mm).
- Chuck Size 1/16"(1.6 mm) to 1/2" (13 mm).
- Motor Universal, 115V/230V, 60Hz. Approved by CSA to CSA and UL standards.
- Output Speed 360 RPM (no load).
- Arbor Capacity Up to 7/16".
- Weight 31 lb.
- Height 12.8".
- Length 11.9".
- Width 13.2".
| Item Number | 76777 |
|---|---|
| Weight | 44.000000 |
| Vendor Part Number | 76777 |
