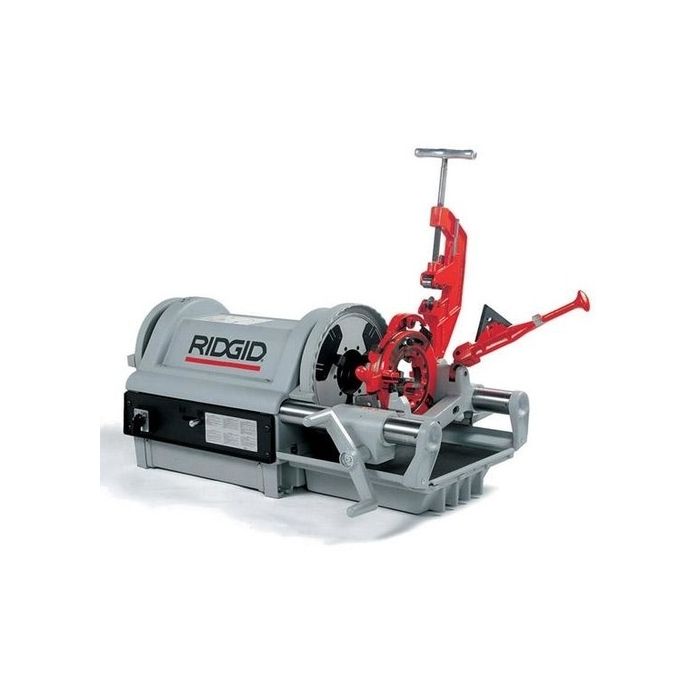

Ridgid 1224 1/4"-4" NPT Hammer Chuck Machine

$12,199.60
Pre Order Today
Item Number
26092
Thread a variety of pipes, including black, galvanized, plastic-coated pipe, along with stainless steel, IMC and heavy-wall conduit, and rod up to 30 Rockwell C, using this Ridgid Model 1224 Threading Machine (26092). Its induction motor minimizes noise for quieter operation.

Due To Shipping Restrictions

This Item is In-Store Pick-Up Only

Specifications

  • Pipe Capacity: 1/4"-4" (6mm-100mm) 4"-6" (100mm-150mm) with 161 Geared Threader.
  • Bolt Capacity: 1/4"-2" (6mm-50mm).
  • Motor: 1 1/2 HP, single-phase, 60 Hz, induction type.
  • Motor Control: Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch.
  • Spindle Speed: 36/12 RPM.
  • Gear Box: Two-speed gear box 3:1 ratio.
  • Chuck: Hammer-type with replaceable rocker-action jaw inserts.
  • Rear Centering Device: Cam action.
  • Cutter: Model 764 full-floating, self-centering 1/4"-4" with F-229 cutter wheel.
  • Reamer: Model 744, 1/4"-4" blade-type.
  • Pump: Self-priming, gerotor-type, automatic-reversing, constant-flow.



Features

  • The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
  • An induction motor helps minimize noise and keep sound levels within limits set by OSHA.
  • A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
  • 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
  • Constant and proper lubrication of dies and workpiece with through-head oiling.

Includes

  • (1) No. 714 (914) 2 1/2"- 4" receding self-opening die head.
  • (1) No. 711 (911) 1/4"- 2" universal self-opening die head.
  • (1) set 1/2"- 3/4" universal alloy dies.
  • (1) set 1" - 2" universal alloy dies.
  • (1) set 2 1/2"- 4" 1224 high-speed dies.
  • (1) gallon Nu-Clear oil.
  • (3) hex keys.
  • (1) spare F-229 cutter wheel.
  • (1) 3/4" combination wrench.
  • (1) No. 744 reamer.
  • (1) No. 764 cutter.
More Information
Item Number 26092
Weight 495.000000
Vendor Part Number 26092
