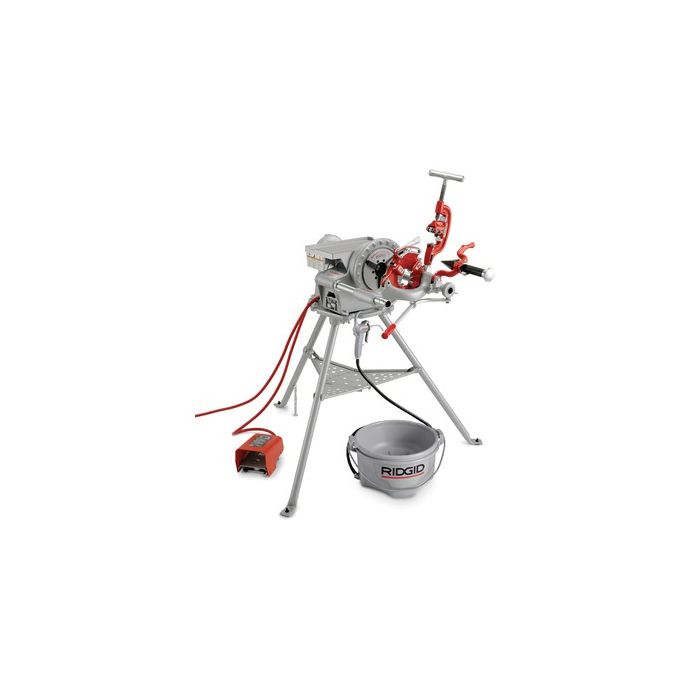

RIDGID MODEL 300 POWER DRIVE COMPLETE 57 RPM
Pre Order Today
Item Number
15722
The threading, cutting and reaming operations can be performed by conventional hand tools or tools designed for mounting on the Power Drive. A manual oiling system is available to flood the workpiece with thread cutting oil during the threading operation. Geared Threaders can also be used with the Power Drive to thread larger diameter pipe. The RIDGID Model 300 Power Drive can also be used as a power source for roll grooving equipment. Designed to attach to the support arms of the Power Drive, the roll grooving equipment forms standard roll grooves on a variety of pipe sizes and materials.
Features
- RIDGID speed chuck.
- Reversible 1/2 HP universal motor.
- Pipe Threading Capacity: 1/8" - 2" (3-50 mm)
- Rod Threading Capacity: 1/4" - 1" - 1/2" (6-40 mm)
- Max. Geared Threader Capacity: 6" (150 mm)
- Recessed On/Off/Reverse switch.
- CSA approved.
- Approved to UL standards (NRTLC).
Specifications
- Motor: 1/2 HP, universal, reversible motor, single-phase,
- Volts: 115V, 25-60HZ
- Switch: Heavy-duty FOR/OFF/REV and Integral Foot Switch.
- Chuck: RIDGID speed chuck with replaceable rocker-action jaws.
- Spindle Speed: 57 RPM
Includes
- (1) 300 Power Drive only with foot switch
- (1) 1206 Stand
- (1) 311 Carriage with lever
- (1) 341 Reamer
- (1) 360 Cutter
- (1) 811A Universal die head
- (1) Set 1/2" - 3/4" Universal alloy dies
- (1) Set 1" - 2" Universal alloy dies
- (1) 32 Transporter
- (1) 418 Oiler
- (1) 1 gallon Nu-Clear thread cutting oil
| Item Number | 15722 |
|---|---|
| Weight | 217.000000 |
| Vendor Part Number | 15722 |
