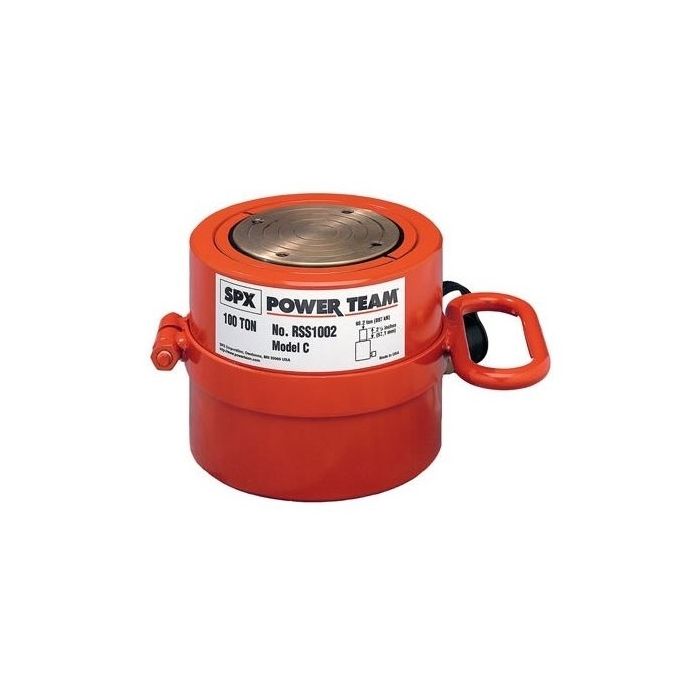

SPX 100 TON CYLINDER 2-1/4" STROKE
Pre Order Today
Item Number
RSS1002
Power Tech plated piston rods and gland nuts resist scoring and corrosion. Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height. Coupler on 10 thru 50-ton models is angled upward 5° for added clearance. Grooved piston top keeps load from sliding. Cylinders can be “dead-ended” at full capacity. Removable carrying handles on 100 ton and 250-ton models.
Specifications
- Cyl Cap. (tons): 100
- Stroke (in.): 2-1/4
- Oil Cap. (cu. in.) Push: 44.2
- Bore Dia. (in.): 5
- Cylinder Effective Area (sq. in.) Push: 19.63
- Internal Press at Cap. (psi) Push: 10,186
- Tons at 10000 (psi) Push: 98.2
- Weight (lbs.): 47.3
- A: Retracted Height (in.): 5-1/2
- B: Extended Height (in.): 7-3/4
- C: Outside Dia. (in.): 6-5/8
- F: Base to Port (in.): 15/16
- H: Piston Rod Dia. (in.): 4-3/8
| Item Number | RSS1002 |
|---|---|
| Weight | 55.000000 |
| Vendor Part Number | RSS1002 |
