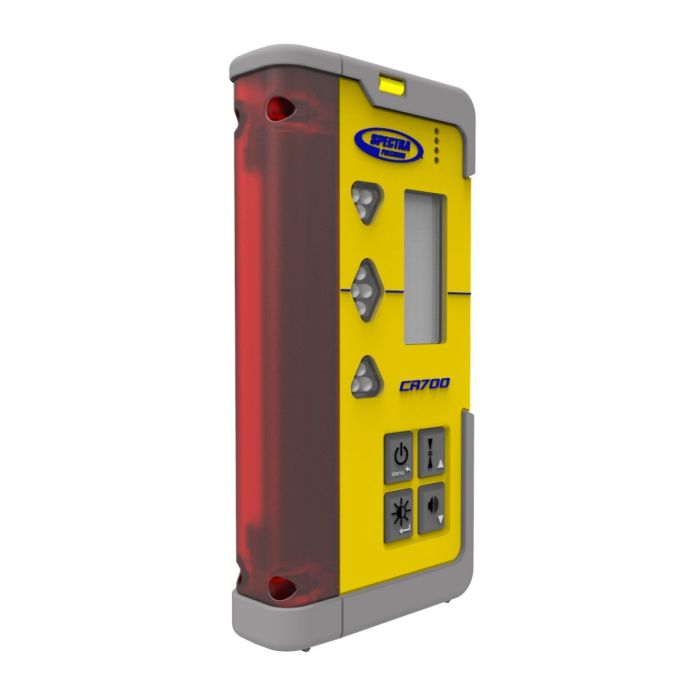

SPECTRA RECEIVER

Features

• Bright LED Arrow Displays – new red/green/blue LED arrows are super bright and visible in all conditions
• Magnetic Clamp – new C71 magnetic clamp will not slip on the machine no matter how rough the work is
• Light Bar Technology – patented laser reception technology delivers the most accurate, consistent and reliable performance
• Laser Radio – the CR700 is radio-compatible with the GL400N / GL600N series grade lasers and the HV302 enabling the use of time saving functions such as Grade Match, Fingerprinting, PlanLok and Axis Alignment
• IP67 – dustproof, waterproof, weatherproof
• 3 m (10 ft) Drop Guarantee – almost destruction proof, extremely robust; eliminates downtime
• Digital Read-Out – the CR700 provides the exact distance from on-grade numerically
• Remote Display – pair the CR700 receiver with an HL760 receiver to be used as a remote display — useful for machine operators and site supervisors
• Fingerprint On/Off – a menu function allows the CR700 to enable or disable Fingerprinting, which pairs the receiver with a particular laser, eliminating erroneous readings from multiple lasers
• Backlight – Receiver can be viewed in the dark or low light conditions
• Vertical Drift Alarm – Warns if the laser is disturbed when using in the vertical mode
• 3-Year Warranty – the best warranty on laser receivers

Specifications

• Working Radius: 1 m - 460 m (3 ft - 1500 ft)
• (Laser dependent):
• Laser Detection Height: 127.0 mm (5“)
• Numeric Readout Height: 102.0 mm (4“)
• Internal Radio: Full 2-way communication, operation and security lock with paired device
• Radio Working Radius: Up to 200 m (660 ft), depending on orientation, conditions and paired device
• Accuracy (Deadband): Ultra Fine 0.5 mm 0.02 in 1/32 in Super Fine 1.0 mm 0.05 in 1/16 in Fine 2.0 mm 0.10 in 1/8 in Medium 5.0 mm 0.20 in 1/4 in Coarse 10.0 mm 0.50 in 1/2 in Machine 25.0 mm 1.00 in 1 in
• Reception Angle: 200° (laser and distance dependent)
• Strobe Anti-strobe sensor
• Detectable Spectrum: 610 nm ... 780 nm
• Beeper Volumes: Loud = 110 dBA Medium = 95 dBA, Low = 65 dBA
• LED Grade Indicators: Green on-grade, Red Hi, Blue Low
• Brightness: Off, Bright, Super-Bright
• Power Supply: 3 x 1.5 Volt “AA” batteries
• Battery Life: 60+ hours; 16 continuous backlight
• Automatic Shut Off: 30 minutes
• Environmental: Waterproof, Dustproof to IP67
• Weight without clamp: 471 g (16.6 oz.)
• Dimensions w/o clamp 98 x 200 x 37 mm (3.9” x 7.8” x 1.5”)
• Operating Temperature: -20°C...+60°C (-4°F... +140°F)
• Storage Temperature: -40°C...+70°C (-40°F...+158°F)
• Regulatory CE EMC / RoHS Compliant
