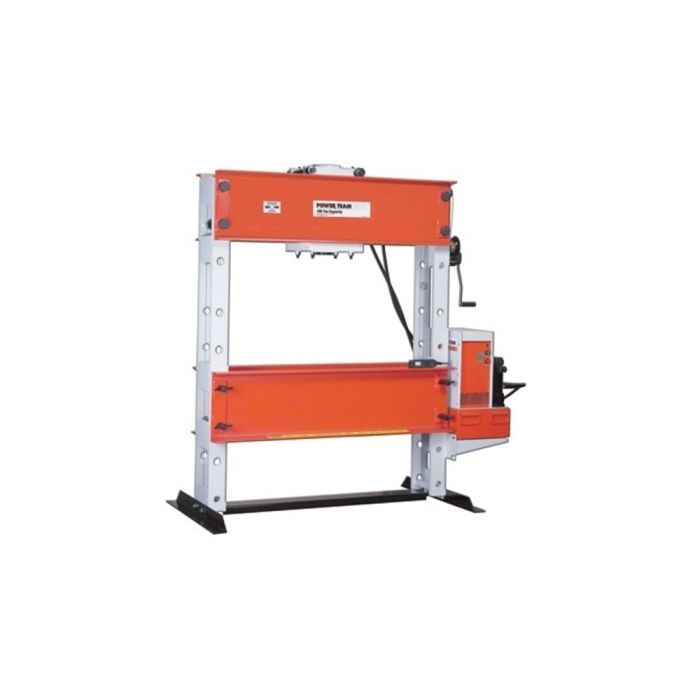

SPX 100 TON H FRAME PRESS
Cylinder work head glides across upper frame on rollers, locks in place for off-center pressing jobs. May be used horizontally for special pressing applications with user supplied supports Press bed is raised and lowered by winch which locks in place for insertion of bed retaining pins. Upper bolster can be lowered 8" for convenient positioning on repetitive jobs. Generous "daylight" of 42" x 50" accommodates bulky work pieces, uprights are placed for easy side entry of bars or shafts for straightening or bending Choice of single or double-acting cylinder. Hydraulic pump options include: 2-speed hand pump with large 2-gallon reservoir, PE172 electric/hydraulic pump or "PQ" series "Quiet" electric/hydraulic pump with low noise.
Specifications
- Solenoid valve with 24-volt remote control hand switch.
- Typical performance base on 100 psi and 10,000 psi pump specifications.
- Actual speeds may vary under operating conditions.
- Pump standard with press. Other power team pumps can be substituted
- Cylinder Type: Double Acting
- Capacity (tons): 100
- Stroke (in): 13-1/8
- Speed (in/min) Advance: 35
- Speed (in/min) Pressing: 5.8
- Pump Type: Electric
- Valve Type: 4-way
- Weight (lbs): 1,886
Dimensions (in):
- *Lateral Head Movement: Yes
- A: 77-1/4
- B: 64
- C: 36
- D*: 7-43
- E: 2-42
- F: 8
- G: 50
- H: 5
- J: 10
- L: 3-3/8
- M: 15
- Floor Space: 36 x 78-1/4
| Item Number | SPE10013DS |
|---|---|
| Weight | 2000.000000 |
