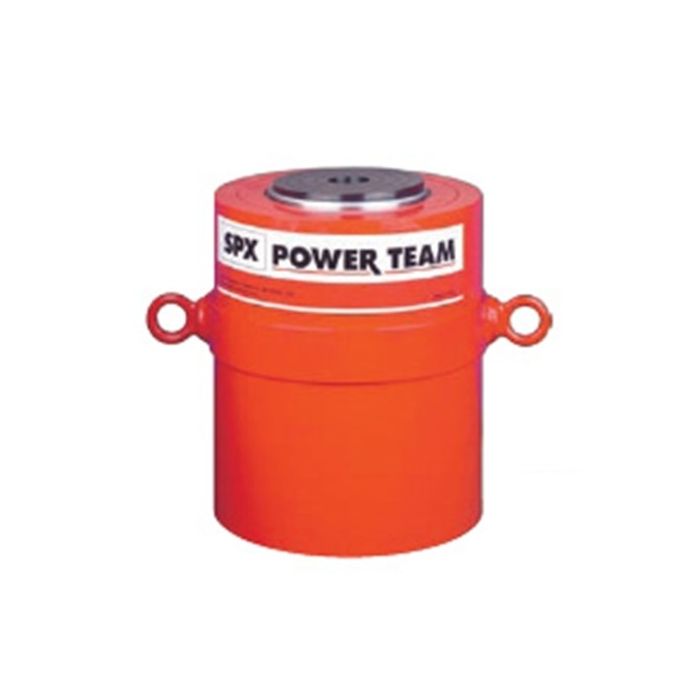

SPX 200 TON 10" STROKE DOUBLE ACTING RAM

Features

• High-tonnage, low cycle, hydraulic return with swivel caps and built in safety relief prevents over pressurization when retracting
• Cylinders come standard with swivel caps to reduce the effects of off-center loading
• Cylinders may be “dead-ended” without damage
• Hard chrome plated, heat treated piston rod reduces wear on piston and gland nut
• Built-in safety relief valve prevents over-pressurization of the retract circuit
• Each cylinder has two 9796 3/8" NPTF female half couplers

Specifications

• Cyl. Cap. (tons): 100
• Stroke (in.): 10
• Oil Capacity/Height (cu. in.)  Push: 206
• Oil Capacity/Height (cu. in.)  Return: 96
• Bore Area (in.): 5 1/8
• Cylinder Effective Press. (sq. in.) Push: 20.6
• Internal Tons 10000 at Cap. (psi) Push: 9,695
• Tons at Wt. (psi) Push: 103
• Weight (lbs.): 108
• Retracted Height (in.): 14 41/64
• Extended Height (in.): 24 41/64
• Outside Port (in.): 6 1/2
• Base to Port (in.): 1
• Cylinder Top to Dia. (in.): 2 13/64
• Piston Rod Dia. (in.): 3 3/4
• Piston Rod Protrusion (in.):    9/32
• Cylinder Retracted Height (in): 12-24
• Cylinder Outside Diameter (in): 6-12
• Cylinder Mounting Type: Internal Base Threads
• Cylinder Oil Capacity (gal): 1-2
