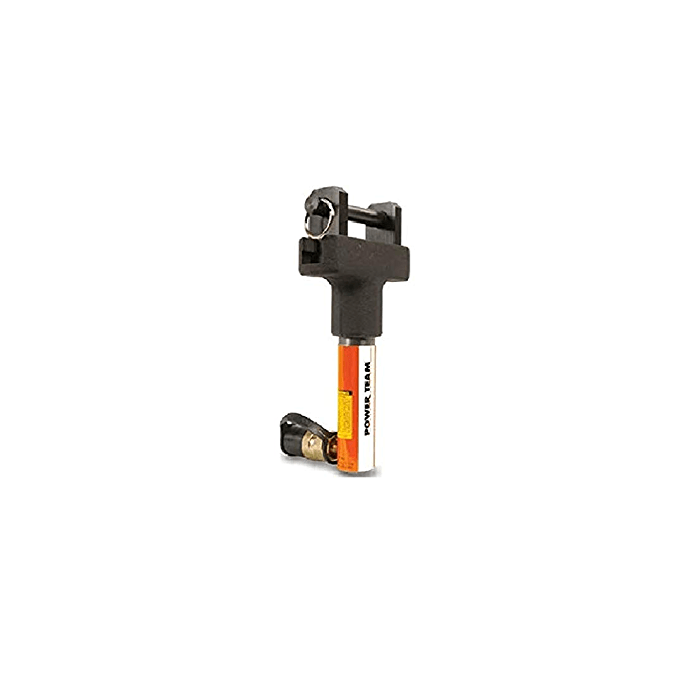

SPX POWER TEAM 5 TON HYDRAULIC PIPE FLANGE SPREADER

Features

• You’ll never again have to resort to “hammer and chisel” methods that waste time and effort. Flange spreaders should be used in pairs to proide even spreading force.
• Standard 60° wedge is suitable for most flanges; 30° “thin” and 60° “blunt” wedges are optional.
• The HFS3A is designed for applications where total thickness of flanges and max. Spread gap is 3" or less and flange bolts are a min. of 11/16" dia.
• Use HFS6A if total thickness of flanges and max. Spread gap is 6" or less, and flange bolts area min. of 13/16" dia.
• Max working pressure 700 bar (10,000 psi)
• Uses a standard 3/8" high flow coupler
