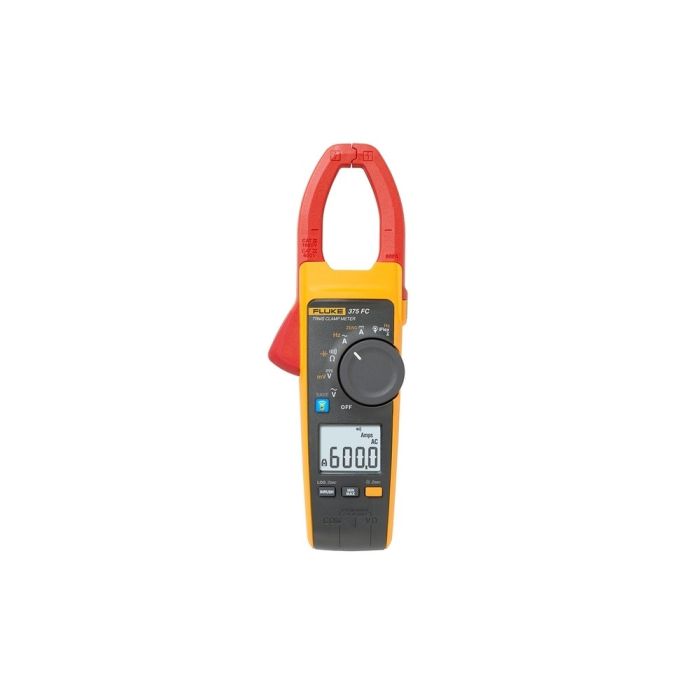

TRUE-RMS 600A AC/DC CLAMP METER
Pre Order Today
Item Number
FLUKE-375FC
The Fluke 375 FC, part of the Fluke Connect family of wireless test tools, delivers high performance features and ease of use. It features a VFD low-pass filter for accurate motor drive measurements and wireless communications to transmit results to a smartphone via Fluke Connect
The 375 FC offers most of the features of the Fluke 376 FC including compatibility with the iFlex flexible current probe but, unlike the 376 FC, it does not include the iFlex® probe in the package. You can measure AC and DC current to 600 A and voltage up to 1000 V with the fixed jaw clamp. Or connect an optional iFlex® flexible current probe to expand your measurement range to 2500 A AC.
Features
- High performance clamp meter that measures very low voltage and high resistance
- Transmits measurements to your smartphone via Fluke Connect so you can view them at a safer distance
- Measures AC and DC current to 600 A, and AC and DC voltage to 1000 V
- Measures AC current to 2500 A AC with optional iFlex flexible current probe
Specifications
- Maximum voltage between any terminal and earth ground 1000 V
- Batteries 2 AA, NEDA 15A, IEC LR6
- Operating temperature -10 °C to +50 °C
- Storage temperature -40 °C to +60 °C
- Operating humidity - non-condensing (< 10°C) ≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C)
- Operating altitude 3000 m
- Storage altitude 12,000 m
- Size (L x W x H) 249 x 85 x 45 mm
- Weight 395 g
- Jaw opening 34 mm
- Flexible current probe diameter 7.5 mm
- Flexible current probe cable length (head to electronics connector) 1.8 m
- Safety IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
- IP rating IEC 60529: IP30, non-operating
| Item Number | FLUKE-375FC |
|---|---|
| Weight | 5.000000 |
| Vendor Part Number | 5065976 |
