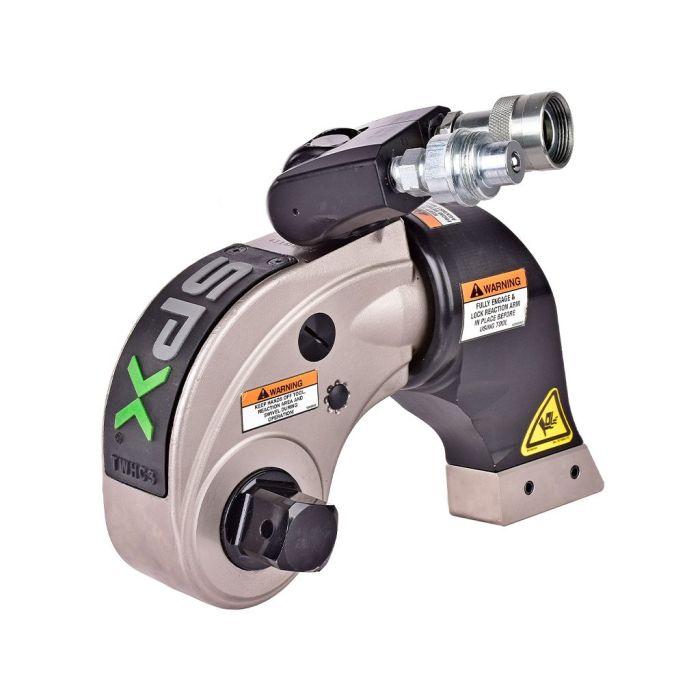

SPX 1" HIGH CYCLE SQUARE DRIVE

Features

• Designed for high cycle life: 2 to 3x more than existing technology
• Increased reliability: simple drive assembly means less downtime
• Corrosion-resistant material used for use in harsh environments
• Compact nose radius allows the tool to fit in tighter, hard-to-reach spaces
• Low weight, high strength design
• Fast operation, long stroke and optimum flow
• Multi-direction high flow swivel manifold
• Push button square drive reversal and reaction arm positioning
• Push-button release of square drive and reaction arm for all models except TWHC50
• Fully enclosed drive mechanism for operator safety
• Swivel manifold internal relief valve prevents retract side over-pressurization
• Fine tooth pawl prevents tool "lock-on"

Specifications

• Wrench Type Hydraulic - High Cycle
• Drive Size 1.0000 in - 1 in
• Torque Range (ft-lbs) 376 to 3136 ft-lbs
• Overall Length 9.18 in
• Torque Range (in-lbs) 4512 to 54144 in-lbs
• Torque Range (N-m) 509.8 to 4251.8 N-m
