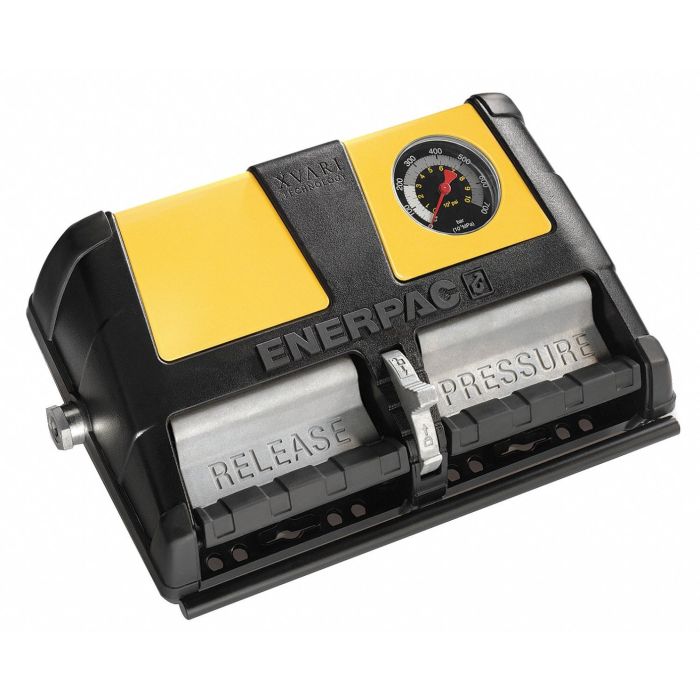

ENERPAC AIR DRIVEN HYDRAULIC PUMP W/61" 3 USABLE OIL & INTEGRATED PRESSURE GAUGE
Pre Order Today
Item Number
XA11G
Enerpac XA Series Air Driven Hydraulic Foot Pumps are ideal choice for hands-free operation.
All models offer two control pedals for adding and releasing pressure to the tool. A pedal lock function can be used in the retract position. The XA foot pump provides fine metering controls to apply the mandatory stroke and force.
This air hydraulic foot pump provides a closed hydraulic system that prevents contamination and allows pump usage in any position.
Specifications
- Maximum Operating Pressure (psi) 10,000
- Cylinder Compatability Single-acting
- Reservoir Capacity (in3) 61
- Usable Oil Capacity (in3) 61
- Maximum Flow at Rated Pressure 15 in3/min
- Output Flow Rate (in3/min) No Load 120
- Output Flow Rate Load (in3/min) 15
- Valve Function Advance / Hold / Retract
- Valve Operation Manual
- Valve Type 3-way, 3-position
- Power Source Air
- Air Pressure Range (psi) 30 - 125
- Air Consumption (scfm) 10 - 35
| Item Number | XA11G |
|---|---|
| Weight | 50.000000 |
